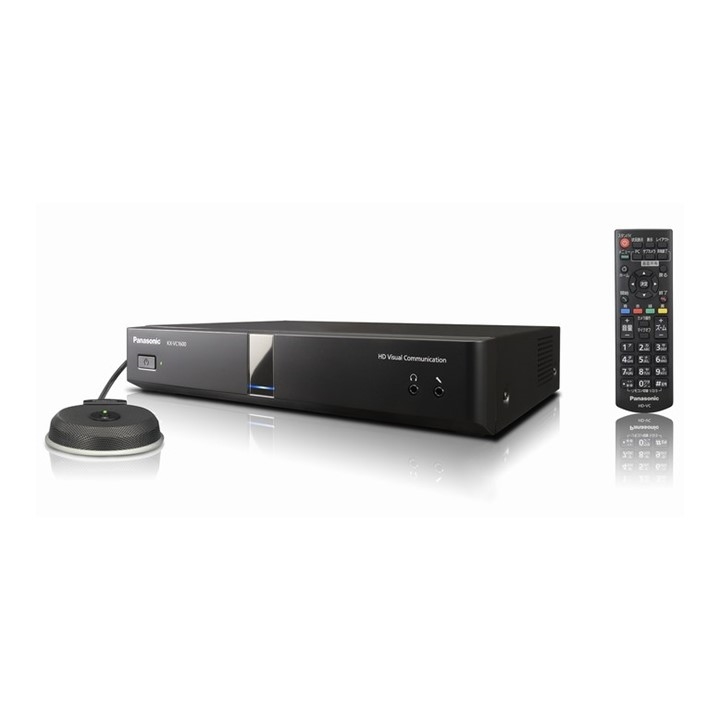

Thiết bị hội nghị truyền hình HDVC Panasonic KX-VC1600

Main Unit

KX-VC1600

Communication Method

SIP, H.323

Video Compression Method

H.261 (mainstream only), H.263, H.263+, H.263++ (reception only),
H.264 High Profile, H.264 Baseline Profile

Audio Compression Method

G.711 μ-law, A-law (3.4 kHz@64 kbps)
G.722 (7.0 kHz@64 kbps)
G.722.1 (7.0 kHz@32 kbps)
G.722.1 Annex C (14.0 kHz@48 kbps/24 kbps)
MPEG-4 AAC‑LD Mono (7.0 kHz@32 kbps, 14.0 kHz@64 kbps, 22.0 kHz@96 kbps)
MPEG-4 AAC‑LD Stereo (14.0 kHz@64 kbps, 22.0 kHz@96 kbps)

No. of Channels

G.711/G.722/G.722.1/G.722.1 Annex C: 1
MPEG-4 AAC-LD Mono: 1/ MPEG-4 AAC-LD Stereo: 2

Remote Camera Control

H.224, H.281 (Zoom/Pan/Tilt/Preset)

Dual Stream

Method

H.239 (H.323), BFCP (SIP)

Multi-Monitor

3 displays

No. of Applicable Resolution Frames

Main: Max. 1080p 30 frames/second, Sub: Max. 1080p 30 frames/second

Encryption

SRTP (AES 128 bit), H.235 (AES 128 bit)

Other

H.460

Communication Bandwidth

256 kbps to 18 Mbps

Video

Compatible Resolutions*¹

176 x 144p, 352 x 240p, 352 x 288p, 512 x 288p, 640 x 480p, 704 x 480p,
704 x 576p, 768 x 432p, 800 x 600p, 1024 x 768p, 1280 x 720p, 1280 x 768p,
1280 x 800p, 1920 x 1080p

No. of Frames

Max. 60 frames/second (for H.264 1080p)

Screen Display

Full-screen, Picture in Picture, Picture with Picture, Side by Side

Audio

Echo canceller, Auto gain control, Stationary noise reduction,
Lip synch, Equalizer, Mic mute

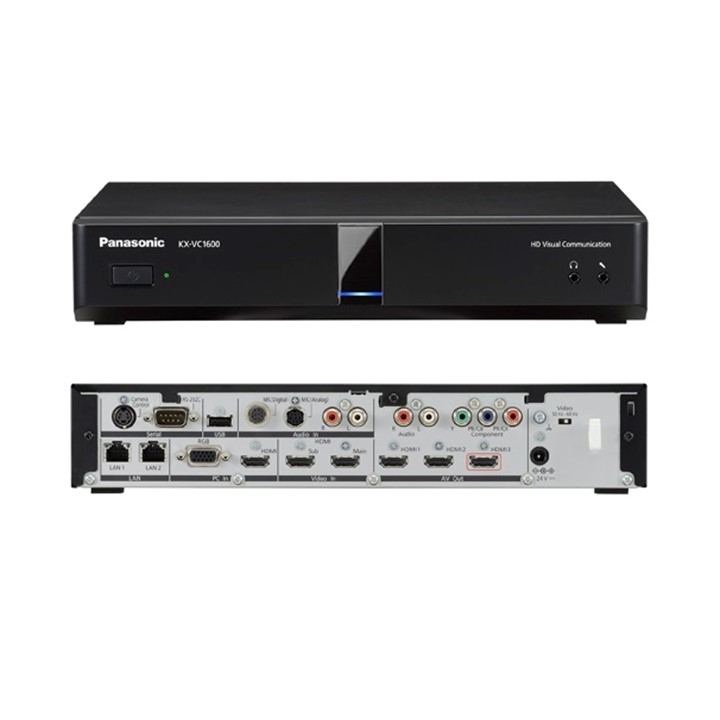

I/O Terminals

Video Input

Camera*²

HDMI main x 1, HDMI sub x 1
Input resolution: 1280 x 720p, 1920 x 1080i, 1920 x 1080p

PC

RGB x 1(Mini D-sub 15pin), HDMI x 1*²
Input resolution: VGA, SVGA, XGA, HD, WXGA, SXGA, FWXGA,
WXGA+, WXGA++, UXGA, WSXGA+, Full-HD

Video Output

HDMI x 2,
HDMI x 1 (For own site/recording video),
RCA x 1 (Component)
Supported output resolutions: 1920 x 1080i, 1920 x 1080p

Audio Input

Digital Boundary Microphone x 1 (KX-VCA001) Max. 4,
Analogue Boundary Microphone x 1 (KX-VCA002) Max. 1,
HDMI, Stereo mini-plug*³*⁴x 1 (ø3.5 mm), RCA*⁵(Stereo) x 1

Audio Output

HDMI*⁶, Stereo mini-plug*³*⁷x 1 (ø3.5 mm), RCA*⁸x 1 (Stereo)

Network

RJ45 x 2 (100BASE-TX Full Duplex)

External Control

RS-232C x 1 (Also used for maintenance)

Others

USB 2.0*⁹x 1, Camera Control Terminal x 1 (Not used)

No. of Simultaneous Connection Sites

6 (Expandable up to 10)

Content Sharing

PC (RGB/HDMI), Sub-camera (HDMI sub)

USB Host Mode
(USB Memory)

Updating Software, Recording,
Import: Contact List / Profile*¹⁰/ Configuration Data / Encryption Data /
Start-up Screen / Delivery Tree List
Export: Contact List / Profile*¹⁰/ Configuration Data / Encryption Data /
Delivery Tree List

USB Device Mode

USB Video Class: Version 1.0
USB Audio Class: Version 1.0

WEB Hybrid Mode

USB Audio Class 1.0

Network Protocol

TCP/IPv4, TCP/IPv6*¹¹, UDP/IPv4, UDP/IPv6*¹¹, DHCP, DNS,
HTTP, HTTPS, TELNET, NTP

Network Functions

Packet resending (ARQ), Forward Error Correction (FEC),
Adaptive Rate Control (ARC), Reorder, Packet Shaping,
Arbitrary Port Setting, NAT Compatibility, Encryption,
IP Precedence/DiffServ Support

External Control

Via Web Browser, Control by HTTP CGI, TELNET, RS-232C

Connection Modes

IP mode, NAT Traversal mode, IP / NAT Traversal mode

Dimensions (width x depth x height)

Approx. 320 mm x approx. 230 mm x approx. 61 mm (Excluding projecting parts)

Weight

Approx. 2.0 kg (approx. 4.4 lb)

Power Input

AC 100-240 V, -1.4 A, 50/60 Hz

Power Consumption

Maximum: approx. 45 W, Standby: 0.6 W

DC Power Input

DC 24 V, 2.5 A

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10 % to 90 % (non-condensing)

Language

English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Russian, Chinese, Arabic
