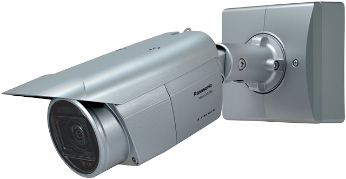

Camera Ipro WV-S1570L

Mã sản phẩmWV-S1570L
Thương hiệuI-PRO
Xuất xứJapan
Giá:Liên hệ
Tình trạng:Đã ngưng sản xuất

I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.

Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…

– Cảm biến hình ảnh: 1/1.8 type CMOS image sensor.

– Độ phân giải camera ip: 8.0 Megapixel.

– Tốc độ khung hình: Lên đến 30 fps.

– Ống kính: 4.3 mm – 8.6 mm.

– Độ nhạy sáng tối thiểu: Color: 0.09 lx, BW: 0.05 lx; B/W: 0.0 lux (with IR LED on).

– Tầm quan sát hồng ngoại: 40 mét.

– Chuẩn nén hình ảnh: H.265/H.264/JPEG.

– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nhiệt độ hoạt động: -40°C to 60°C.

– Nguồn điện:

+ DC power supply: DC12V/ 830mA/ Approx. 10.0W.

+ PoE (IEEE802.3af compliant) Device: DC48V/ 220mA/ Approx. 10.6W (Class 0 device).

Model	WV-S1570L
Camera
Image Sensor	1/1.8 type CMOS image sensor
Minimum Illumination	– Color: 0.09 lx, BW: 0.05 lx (F1.5, Maximum shutter: Off (1/30s), AGC: 11) – BW: 0 lx (F1.5, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) – Color: 0.006 lx, BW: 0.003 lx (F1.5, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	ATW1, ATW2, AWC
Shutter Speed	1/30 Fix to 1/10000 Fix
Intelligent Auto	On/ Off
Super Dynamic	On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range	Max 120 dB (Super Dynamic: On, Level: 31)
Adaptive Black Stretch	The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation	BLC (Back light compensation)/ HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation	On/ Off , The level can be set in the range of 0 to 8 (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/ On (IR Light Off)/ On (IR Light On)/ Auto1(IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light	High/ Middle/ Low/ Off,Maximum irradiation distance: 40m {Approx. 131 ft}
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On/ Off, 4 areas available
Intelligent VMD (i-VMD)	Type6 Bundled License
Privacy Zone	On/ Off (up to 8 zones available)
Image rotation	0° (Off)/ 90°/ 180° (Upside-down)/ 270°
CameraTitle (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Lens
Zoom Ratio	2x Optical zoom (Motorized zoom/ Motorized focus) 6x HD Extra Optical Zoom (when resolution is 1280×720)
Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
Focal length	4.3 mm – 8.6 mm {5/32 inches – 11/32 inches}
Maximum Aperture Ratio	1 : 1.5 (WIDE) – 1 : 2.4(TELE)
Focus range	1 m {39-3/8 inches} – ∞
Angular Field of View	[16 : 9 mode] Horizontal : 53° (TELE) – 104° (WIDE) Vertical : 30° (TELE) – 56° (WIDE)
Adjusting Angle
Ceiling mounting	Horizontal: ±180° (Adjust by horizontal (PAN) angle) Vertical: 0° to 100° (Adjust by vertical (TILT) angle) Yaw: –190° to +100° (Adjust by azimuth (YAW) angle)
Wall mounting	Horizontal: ±100° (Adjust by vertical (TILT) angle) Vertical: ±100 ° (Adjust by vertical (TILT) angle) Yaw: –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
Browser GUI
Camera Control	Brightness, AUX On/ Off
Audio	Mic (Line) Input : On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment : Low/ Middle/ High
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/JPEG (MJPEG)	[16 : 9 mode] 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180
H.265/H.264	Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort Transmission Type: Unicast/ Multicast
JPEG	Image Quality: 10 steps
Smart Coding	GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS: On/ Off
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Audio transmission mode	Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
Supported Protocol	– IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
SDXC/SDHC/SD Memory Card	– H.265/ H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SDXC/SDHC/SD – Memory Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB** model SDHC card, * SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility	iPad, iPhone, AndroidTM mobile terminals
Alarm
Alarm Source	3 terminals input, VMD alarm, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input	ø3.5 mm stereo mini jack – For microphone input: + Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) + Input impedance: Approx. 2 kΩ (unbalanced) + Supply voltage: 2.5 V ±0.5 V – For line input: + Input level: Approx. –10 dBV
Audio Output	ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV
External I/O Terminals	ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and	DC power supply: DC12 V 830 mA/Approx. 10.0 W
Power Consumption	PoE (IEEE802.3af compliant) Device: DC48V/220 mA/Approx. 10.6 W (Class 0 device)
Ambient Operating	-40 °C to +60 °C (-40 °F to 140 °F)*8
Temperature	(Power On range: –30 °C to +60 °C {–22 °F to +140 °F})
Ambient Operating Humidity	10 to 100 % (no condensation)
Water and Dust Resistance	IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance	IK10 (IEC 62262)
Wind Resistance	Up to 40 m/s {approx. 89 mph}
Dimensions *With adapter box	With adapter box: 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box: 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)}
Mass *With adapter box	With adapter box: 2.1 kg {4.64 lbs} Without adapter box: 1.6 kg {3.53 lbs}
Finish	Main body: Aluminum die cast and resin, Metallic silver Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front panel: Polycarbonate resin, Clear
