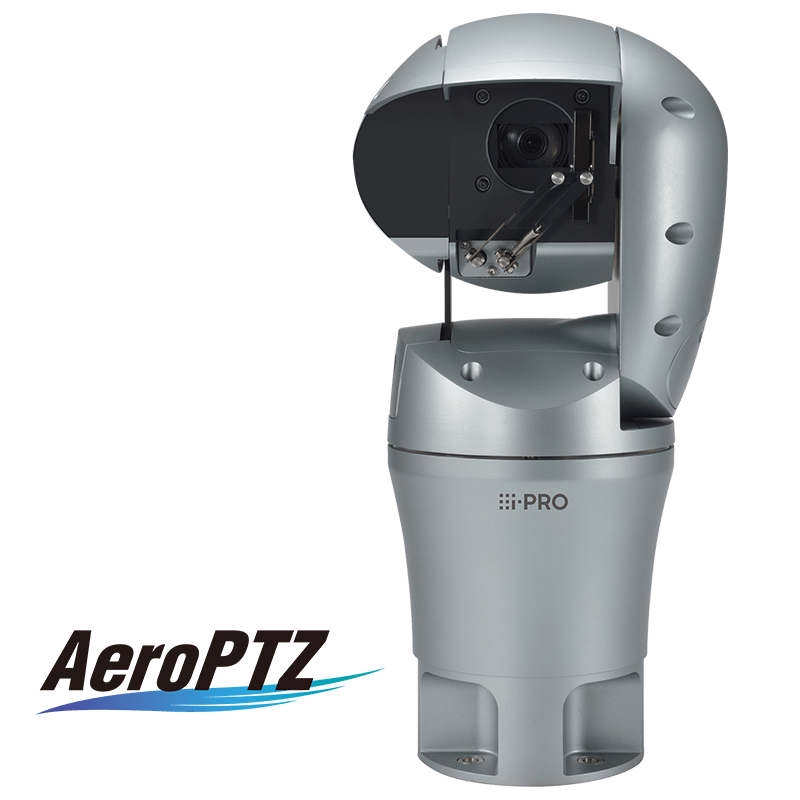

Camera Ipro WV-SUD638
- Mã sản phẩmWV-SUD638
- Thương hiệuI-PRO
- Xuất xứJapan
- Giá:Liên hệ
- Tình trạng:Hàng sẵn kho
I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.
Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: Lên đến 60 fps.
- Ống kính: 4.3 mm – 129 mm.
- Độ nhạy sáng tối thiểu: Color: 0.06lx, BW: 0.02lx; B/W: 0.0lux (with IR LED on).
- Tầm quan sát hồng ngoại: 150 mét.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66, IK67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: AC100 to 240V, 50Hz/ 60Hz.
Model | WV-SUD638 |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Minimum Illumination | – Color: 0.06 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.004 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) – BW: 0.02 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High) 0.001 lx (F1.6, Maximum shutter: max. 16/30 s, AGC: High) 0 lx (F1.6, Maximum shutter: Off(1/30 s), AGC: High, when the IR LED (Optional) is lit) |
Super Dynamic | Dynamic Range 105 dB typ. |
Image settings | Gain (AGC), White balance |
Image compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
Shutter speed | [2 Megapixel [16 : 9] (60 fps mode)] Off (1/60) to 1/10000 Other than [2 Megapixel [16 : 9](60 fps mode)] Off (1/30) to 1/10000 |
Day/Night (ICR) | Off / On/ Auto1(Normal)/ Auto2(IR Light)/ Auto3(SCC) |
IR LED Light (Optional) | Off/ Auto (High/ Mid/ Low) irradiation distance: 150 m (500 feet) |
Image stabilization | On/ Off *Hybrid image stabilizer |
Privacy zone | Gray/ Mosaic/ Off (up to 32 zones available) |
Cameratitle on screen | Up to 20 characters (alphanumeric characters, marks) |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Lens | |
Zoom Ratio | 30x/ 45x with HD extra optical zoom (at 1280 x 720) (Motorized zoom/ Auto Focus) |
Digital (electronic) zoom | 24x |
Focal length | 4.3 mm – 129 mm {3/16 inches – 5-3/32 inches} |
Maximum Ratio Aperture | 1 : 1.6 (WIDE) – 1 : 4.7 (TELE) |
Focus range | 2.0 m – ∞ |
Aperture range | F1.6 (WIDE) – Close |
Angular field of view | – [16 : 9 mode] Horizontal: 2.3° (TELE) – 64° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE) – [4 : 3 mode] Horizontal: 1.8° (TELE) – 50° (WIDE) Vertical: 1.3° (TELE) – 38° (WIDE) |
Pan/tilt unit | |
Panning Range | 360° endless |
Panning Speed | – Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.) |
Tilting Range | Upright: –45° to +90° Forward tilt: –90° to +90° Hanging: –90° to +30° |
Tilting Speed | Manual: approx. 0.065°/s to 100°/s Preset: up to approx. 200°/s (Except when IR LED Unit is equipped, forward tilt mount, frozen.) |
Preset Positions | 256 positions |
Auto Mode | Auto track/ Auto pan/ Preset sequence/ 360 map-shot/ Preset map-shot/ Patrol |
Self Return | 10s to 60 min |
Tilt flip | On/ Off |
Map Shot | 360° map shot/ preset map shot |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | – 2 Megapixel [16 : 9] (60 fps mode/30 fps mode) + H.264: Maximum 1,920 x 1080 + JPEG: Maximum 1,920 x 1080 – 1.3 Megapixel [4 : 3] (30 fps mode) + H.264: Maximum 1,280 x 960 + JPEG: Maximum 1,280 x 960 |
Image compression method | – H.264 Transmission Mode : Constant bit rate/ Variable bit rate/ Frame rate priority/ Best effort/ Advanced VBR Transmission type: Unicast/ Multicast – JPEG Image Quality: 10 steps – Multiple streams individually configurable |
Intelligent compression | Smart coding, VIQS (ROI) |
Audio compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps, AAC-LC(High quality): 64 kbps/ 96 kbps/ 128 kbps |
Protocol | – Pv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ – IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ |
Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
Mobile terminal compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
Environment | |
Water and Dust Resistance | – Main body: IP66, IP67, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant – Waterproof RJ45 connector, Waterproof power connector, Waterproof I/O connector |
Shock resistance | Compliant with IK10 (IEC 62262) |
Vibration resistance | IEC60068-2-6 compliant |
Salt damage resistance | ISO14993 compliant |
Resistance to wind | Upright 216 km/h (135 mph) (Operation) / 288 km/h (180 mph) (non-destructive) Forward tilt 50 m (112 mph) (Operation) / 80 m (180 mph) (non-destructive) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55024 |
Power source | AC100 to 240 V, 50 Hz / 60 Hz Tested PoE Injector* (60 W) *with limitations |
Operating environment | – Ambient operating temperature: AC100 to 240V: –50°C to +60°C {–58°F to 140°F} (Power On range: –30°C to +60°C {–22°F to 140°F}) – When using the tested PoE injector: –30°C to +60°C {–22°F to 140°F} – When using the tested PoE injector and IR LED unit at the same time: –20°C to +55°C {–4°F to 131°F}) *The upper limit value of ambient operating temperature indicates the use of WV-SUD638 (natural silver). In cases of products with other body colors, the upper limit value is +55°C {131°F}. *When WV-SUD6FRL1 (IR LED unit) is attached, the upper limit value of ambient operating temperature is +55 °C {131°F}. Ambient operating humidity: 10% to 100% |
External I/O terminals | ALARM IN 1(DAY/NIGHT IN, Auto time adjustment), ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT), Relay connection (x1 for each) |
Line input | ø3.5 mm monaural mini jack Input impedance: Approx. 2 kΩ (unbalanced) For line input: Input level : Approx. –10 dBV |
Audio output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Using Amplifier built-in external speaker Output level: –20 dBV |
Dimensions | 220 mm (W) x 450 mm (H) x 266 mm (D) {8-21/32 inches (W) x 1ft 5-23/32 inches (H) x 10-15/32 inches (D)} |
Mass (approx.) | Approx. 8.5 kg {18.7 lbs} |
