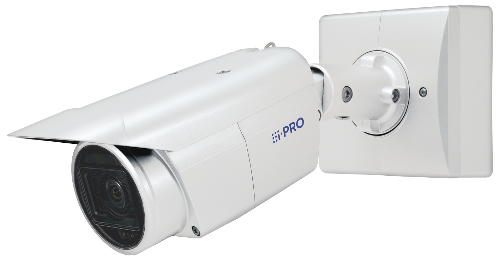

Camera Ipro WV-X1551LN

Cảm biến hình

1/2.8 type CMOS image sensor

Cường độ ánh sáng nhỏ nhất

Color : 0.07 lx, BW : 0.04 lx (50IRE, F1.3, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (50IRE, F1.3, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.0044 lx, BW : 0.003 lx (50IRE, F1.3, Maximum shutter : max. 16/30s, AGC : 11)

Cân bằng trắng

ATW1/ATW2/AWC

Tốc độ màn trập

[30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix

AI Intelligent Auto

On / Off

Dải động

On / Off, The level can be set in the range of 0 to 31.

Dải tần nhạy sáng

Max.132 dB (Super Dynamic : On, Level : 30 or more, 15fps)

Bù sáng

BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / AI Intelligent Auto : Off)

Bù sương

On / Off, The level can be set in the range of 0 to 8 (only when AI Intelligent auto / auto contrast adjust : Off)

AGC

The level can be set in the range of 0 to 11.

Color/BW (ICR)

Off / On (IR Light Off) / On (IR Light On) / Auto1(IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

Đèn LED

High / Middle / Low / Off, Maximum irradiation distance : 40 m {Xấp xỉ 131 ft}

Giảm nhiễu động

The level can be set in the range of 0 to 255.

Phát hiện chuyển động (VMD)

On / Off, 4 areas available

SCD (Phát hiện chuyển cảnh)

On / Off, 1 area available

Vùng bảo mật

On / Off, Up to 8 zones available

Xoay hình

0 ° (Off) / 90 ° / 180 ° (Upside-down) / 270 °

OSD

On / Off, Up to 20 characters (alphanumeric characters, marks)

Tùy chọn thu phóng

3.1x (Motorized zoom / Motorized focus)

Tùy chọn zoom

3.1x – 9.3x (when resolution is 640×360)

Zoom tự động

Choose from 3 levels of x1, x2, x4

Độ dài tiêu cự

2.9 mm – 9 mm {1/8 inches – 11/32 inches}

Tỷ lệ khẩu độ

1 : 1.3 (WIDE) – 1 : 2.5(TELE)

Phạm vi tiêu điểm

0.3 m {11-13/16 inches} – ∞

Góc nhìn

[16 : 9 mode ] Horizontal : 34° (TELE) – 106° (WIDE), Vertical : 19° (TELE) – 57° (WIDE) *[4:3 mode] is not supported.

Phát hiện

(25ppm / 8ft) Wide: 200.96 m / 659.32 ft, Tele: 46.3 m / 151.90 ft

Quan sát

(62.5ppm / 19ft) Wide: 80.38 m / 263.72 ft, Tele: 18.52 m / 60.76 ft

Nhận biết

(125ppm / 38ft) Wide: 40.19 m / 131.86 ft, Tele: 9.26 m / 30.38 ft

Xác định

(250ppm / 76ft) Wide: 20.1 m / 65.93 ft, Tele: 4.63 m / 15.19 ft

Tùy chọn góc

Horizontal : ±180 ° (Adjust by horizontal (PAN) angle) Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle) Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)

Tùy chọn góc (Gắn tường)

Horizontal : ±100 ° (Adjust by vertical (TILT) angle)* Vertical : ±100 ° (Adjust by vertical (TILT) angle)* Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle

Kiểm soát hình ảnh

Brightness, AUX On / Off

Âm thanh

Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High

GUI / Cài đặt ngôn ngữ

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network IF

10Base-T / 100Base-TX, RJ45 connector

Độ phân giải H.265/ H.264 JPEG (MJPEG)

[16 : 9 mode ] 3072×1728*7, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 *[4:3 mode] is not supported.

H.265/H.264

[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast

JPEG

[Image Quality] 10 steps

Mã hóa thông minh

Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream(1). GOP (Group of pictures) control :On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265.

Nén âm thanh

G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps

Truyền âm thanh

Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Giao thức hỗ trợ

IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

Số người truy cập tối đa

Up to 14 users (Depends on network conditions)

Thẻ nhớ SDXC/SDHC/SD

H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card)

Thiết bị di động tương thích

iPad, iPhone, AndroidTM terminals

ONVIF Profile

G / S / M / T

Nguồn cảnh báo

3 terminals input, VMD alarm, Command alarm

Cảnh báo

SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output

Đầu ra hình

VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera

Đầu vào âm thanh

ø3.5 mm stereo mini jack [For microphone input] Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Xấp xỉ 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V [For line input] Input level : Xấp xỉ –10 dBV

Đầu ra âm thanh

ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Xấp xỉ 600 Ω (unbalanced) Output level : –20 dBV

External I/O Terminals

ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

An toàn

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Nguồn điện và mức tiêu thụ

DC power supply : DC 12 V 930 mA/Xấp xỉ 11.2 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA/Xấp xỉ 11.5 W (Class 0 device)

Nhiệt độ hoạt động

-40 °C to +60 °C (-40 °F to +140 °F) (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}

Độ ẩm hoạt động

10 to 100 % (no condensation)

Chống nước và bụi

IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant

Chống sốc

IK10 (IEC 62262)

Chống gió

Up to 40 m/s {Xấp xỉ 89 mph}

Kích thước

With adapter box : 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box : 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)}

Trọng lượng

With adapter box : 2.2 kg {4.85 lbs} Without adapter box : 1.7 kg {3.75 lbs}
