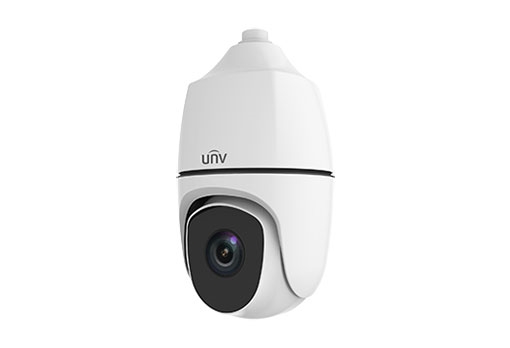

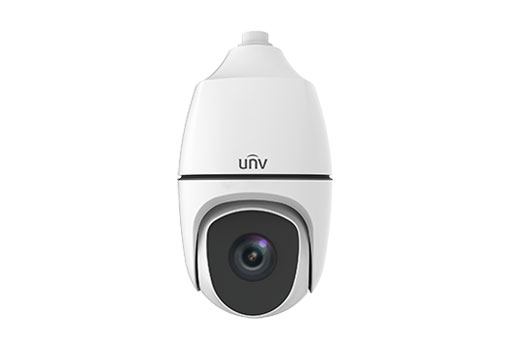

Camera UNV IPC6854SR-X38UP-VC

IPC6854SR-X38UP-VC

Camera

Sensor

1/1.8″, 4.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.001Lux (F1.3, AGC ON)
0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

WDR

120dB

S/N

>56dB

Lens

Lens type

5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

38

Iris

Auto/manual; F1.3 ~ F4.6

Angle of View (H)

58.5° ~ 2.1°

Angle of View (V)

34.9° ~ 1.2°

Angle of View (O)

72.0° ~ 2.5°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

5.7

103.7(340.1ft)

41.5(136.0ft)

20.7(68.0ft)

10.4(34.0ft)

216.6

3249.0(10659.4ft)

1299.6(4263.8ft)

649.8(2131.9ft)

324.9(1065.9ft)

Illuminator

IR Range

UP to 250m (820ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP (2688*1520)@60fps;
Sub Stream: 2MP (1920*1080)@60fps;
Third Stream: D1 (720*576)@60fps;
Fourth Stream:D1(720×576)@60fps;
Fifth Stream:D1(720×576)@60fps;

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

U-code

Support

ROI

Up to 8 areas

Video stream

Five streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas(Up to 8 blacks or 8 mosaics in the same picture)


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

EIS

Support (gyroscope)

HLC

Support

BLC

Support

Defog

Optical Defog & Digital Defog

Events

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation
Ezview
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 180°/s

Preset speed: 300°/s

Tilt Range

-15° ~ 90° (auto reverse)

Tilt Speed

0.1° ~ 180°/s

Preset speed: 240°/s

Number of Presets

1024

Patrol

Preset patrol, route patrol, recorded patrol

Preset Image Freeze

Support

Home Position

Support

Interface

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 RJ45 10M / 100M Base-TX Ethernet

Video output

N/A

Certification

EMC

FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013

Safety

IEC 62368-1
EN 62368-1
UL 60950-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP66 (IEC 60529-2013)

General

Power

AC 24V ±25%, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required)

Power consumption: Max 70W

Power Interface

Wires with cold-pressed terminal

Dimensions (Ø x H)

Φ270 x 496.7mm (Φ10.6” x 19.6”)

Weight

9.69kg (21.4lb)

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Vandal Resistant

N/A

Ingress Protection

IP66

Reset Button

Support
