Ruijie Networks là một trong 4 nhà sản xuất thiết bị mạng – wifi cấp doanh nghiệp (Enterprise) lớn nhất thế giới (Ruijie, Cisco, HP, Huawei,…). Các sản phẩm cấp doanh nghiệp được kiểm tra và chứng nhận bởi công ty Tolly (USA).
RG-NBS3100-8GT2SFP là một trong những sản phẩm thuộc bộ sưu tập sản phẩm của Ruijie, được phân phối bởi Công ty CPCN Phúc Bình. Với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, phù hợp sử dụng cho khách sạn, nhà máy, cửa hàng, văn phòng vừa & nhỏ.

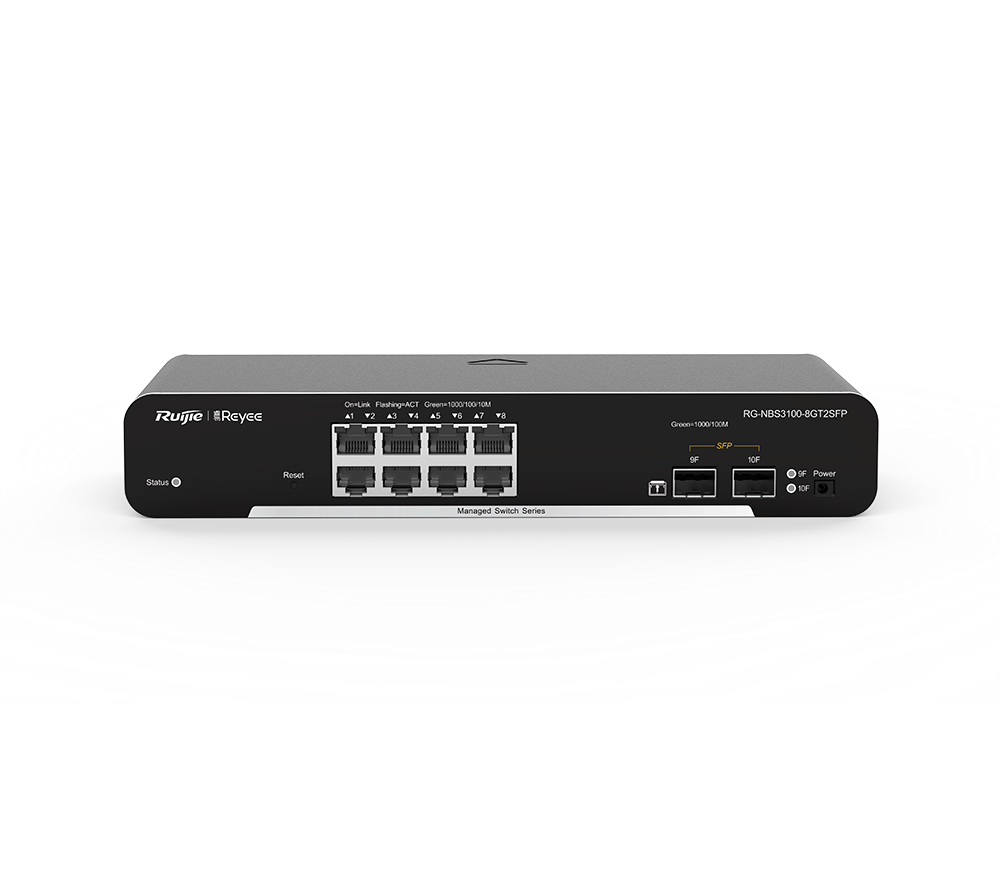

RG-NBS3100-8GT2SFP
Flexible VLAN Division
In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network. Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.
Surge Protection Ensuring Product Stability
The 6KV surge protection of the port reduces the probability of being damaged by surges and improves the customer’s network stability.
MANET for Switches Allowing One-step Project Management
RG-NBS3100 can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports MANET for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.
Ruijie Cloud App/ Ruijie Cloud Platform Remote Management
RG-NBS3100 not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.
Model | RG-NBS3100-24GT4SFP | RG-NBS3100-8GT2SFP | RG-NBS3100-24GT4SFP-P | RG-NBS3100-8GT2SFP-P | |
Model | RG-NBS3100-24GT4SFP | RG-NBS3100-8GT2SFP | RG-NBS3100-24GT4SFP-P | RG-NBS3100-8GT2SFP-P | |
Fixed ports | 24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports | 8 10/100/1000Base-T ports, 2 SFP 1000Base-X ports | 24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP 1000Base-X ports, 370W PoE power | 8 10/100/1000Base-T ports (support PoE and PoE+), 2 SFP 1000Base-X ports, 125W PoE power | |
Switching capacity | 336Gbps | 192Gbps | 336Gbps | 192Gbps | |
Packet forwarding rate | 42Mpps | 15Mpps | 42Mpps | 15Mpps | |
MAC address | Support static MAC address, MAC address filtering | ||||
MAC address table size | 8K | ||||
Number of VLANs | 4094 | ||||
Link aggregation | Support | ||||
Port mirroring | Many-to-one mirroring | ||||
Spanning tree | STP, RSTP | ||||
LLDP | Support | ||||
IP routing | N/A | ||||
ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) | ||||
QoS | Port-based speed limit (ingress/egress) | ||||
Security | Port protection Hardware CPP | ||||
Management | Web management, Ruijie Cloud or Ruijie Cloud app management | ||||
DHCP | DHCP snooping | ||||
EEE | Support | ||||
Physical specifications | |||||
Dimensions | 440×165×44mm | 260x120x43.6mm | 440×293×44mm | 300x220x43.6mm | |
PoE | N/A | N/A | 24 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W | 8 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 125W Maximum output power per port: 30W | |
Temperature | Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃ | ||||
Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |
