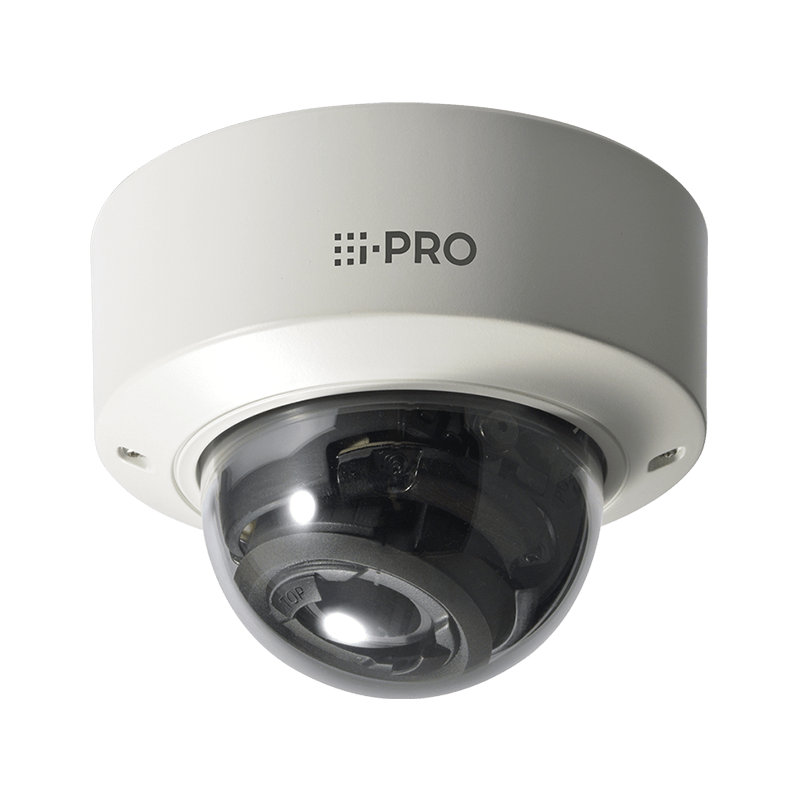

Camera Ipro WV-S2131L
- Mã sản phẩmWV-S2131L
- Thương hiệuI-PRO
- Xuất xứJapan
- Giá:Liên hệ
- Tình trạng:Hàng sẵn kho
I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.
Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…
Camera IP Dome hồng ngoại 2.0 Megapixel Ipro WV-S2131L
– Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
– Độ phân giải camera ip: 2.0 Megapixel.
– Tốc độ khung hình: 60 fps.
– Độ nhạy sáng tối thiểu: Color: 0.012 lx, BW: 0.006 lx; B/W: 0.0 lux (with IR LED on).
– Tầm quan sát hồng ngoại: 30 mét.
– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG (MJPEG).
– Nguồn điện: DC12V/560 mA; PoE DC48V/150 mA.
Model | WV-S2131L |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Minimum Illumination | – Color: 0.012 lx, BW: 0.006 lx (F1.6, Maximum shutte : Off (1/30s), AG : 11) – BW: 0 lx (F1.6, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) – Color: 0.0008 lx, BW: 0.0004 lx (F1.6, Maximum shutter : max. 16/30s, AGC: 11) |
White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only |
Intelligent Auto | On/Off |
Super Dynamic | On/Off, the level can be set in the range of 0 to 31 |
Dynamic Range | 144 dB (Super Dynamic: On) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back light compensation/High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
Maximum gain (AGC) | The level can be set in the range of 0 to 11 |
Color/BW (ICR) | Off / On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance: 30 m {Approx. 98 ft} |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 4 *Bundled License |
Stabilizer | On/Off (available only in the 30 fps mode) |
Privacy Zone | On/Off (up to 8 zones available) |
Image rotation | 0°/ 90°/ 180°/ 270° |
CameraTitle (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Focus Adjustment | Auto back focus/ Manual |
Lens | |
Focal length | 2.8 – 10 mm {1/8 inches – 13/32 inches} |
Zoom ratio | 3.6x (Motorized zoom/ Auto Focus) |
Angular Field of View | – [16 : 9 mode] Horizontal: 30° (TELE) – 110° (WIDE) Vertical: 17° (TELE) – 59° (WIDE) – [4 : 3 mode] Horizontal : 25° (TELE) – 90° (WIDE) Vertical : 19° (TELE) – 66° (WIDE) |
Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 3.4 (TELE) |
Focusing Range | 0.3 m {11-13/16 inches} – ∞ |
Adjusting Angle | |
Adjusting Angle | Horizontal: -240 to +120°, Vertical: -30 to +85°, Yaw: ±100° |
Browser GUI | |
Camera Control | Brightness, AUX On/Off |
Audio | Mic (Line) Input: On/Off Volume adjustment : Low/ Middle/ High Audio Output: On/Off Volume adjustment: Low/ Middle/ High |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | – 2 Megapixel [16 : 9] (30/60 fps) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180 – 3 Megapixel [4 : 3] (30 fps) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
H.265/H.264 | – Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast |
JPEG | Image Quality: 10 steps |
Smart Coding | – Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off *Smart Facial Coding is only available with Stream(1). – GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off *On(Advanced) is only available with H.265. |
Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex / Interactive (Full duplex) |
Supported Protocol | – Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | – H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Mobile Terminal Compatibilit | iPad, iPhone, Android mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/ Output | |
Monitor Output (for adjustment) | VBS: 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | DC power supply: DC12 V 560 mA, Approx. 6.8 W PoE (IEEE802.3af compliant) Device: DC48 V 150 mA, Approx. 7.2 W (Class 0 device) |
Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
Ambient Operating Humidity | 10 to 90 % (no condensation) |
Dimensions * Installing using the base bracket | ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches} |
Mass (approx.) | Approx. 560 g (1.23 lbs) |
Finish | Main body : ABS resin, sail white Dome section : Clear acrylic resin |
