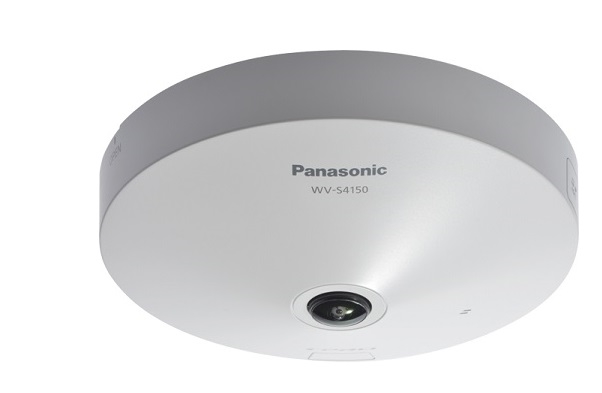

Camera Ipro WV-S4150
- Mã sản phẩmWV-S4150
- Thương hiệuI-PRO
- Xuất xứJapan
- Giá:Liên hệ
- Tình trạng:Đã ngưng sản xuất
I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.
Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…
– Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
– Độ phân giải camera ip: 5.0 Megapixel.
– Tốc độ khung hình: Lên đến 30 fps.
– Ống kính: 0.84 mm.
– Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.2lx.
– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
– Nguồn điện:
+ DC power supply: DC12V/ 385 mA, Approx. 4.6W.
+ PoE (IEEE802.3af compliant) Device: DC48V/ 105mA, Approx. 5.1W (Class 2 device).
Model | WV-S4150 |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Minimum Illumination | – Color: 0.3 lx, BW: 0.2 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11) – Color: 0.02 lx, BW: 0.013 lx (F2.4, Maximum shutter: max. 16/30s, AGC: 11) |
Intelligent Auto | On/ Off |
Maximum shutter | Max.16/30s to Max. 1/10000s |
Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
Dynamic Range | 108 dB (Super Dynamic: On, level: 31) |
Image Settings | Gain (AGC), White balance |
Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
Day/ Night (Electrical) | Off/ Auto |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 5 *Bundled License |
Privacy Zone | On/ Off (up to 8 zones available |
CameraTitle (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Fixing angle adjustment | -5°, 0°, +5° |
Lens | |
Zoom Ratio | 1x |
Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
Focal length | 0.84 mm {1/32 inches} |
Maximum Aperture Ratio | 1 : 2.4 |
Focus range | 0.3 m {11-13/16 inches} – ∞ |
Angular Field of view | Horizontal: 186° Vertical: 186° |
Browser GUI | |
Camera Control | Brightness, AUX On/ Off |
Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution | – Fisheye mode max.30 fps 2192×2192/ 1280×1280/ 640×640/ 320×320 – Quad PTZ mode max.30 fps, Single PTZ mode max.30 fps 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA |
– Double Panorama mode (max. 30 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 – Fisheye + Double Panorama mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Double Panorama) 1280×720/ 640×360/ 320×180 – Fisheye + Quad PTZ mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Quad PTZ) 1280×960/ 800×600/ VGA/ QVGA – Quad streams mode (Single PTZ (Quad streams)) 1280×960/ 800×600/ VGA/ QVGA (max. 30 fps) (Quad PTZ) 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA (max. 5 fps) | |
– Panorama mode (max. 30 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 – Fisheye + Panorama mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Panorama) 1280×720/ 640×360/ 320×180 | |
H.265/ H.264 | – Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast |
JPEG | – Image Quality: 10 steps |
Smart Coding | – GOP (Group of pictures) control : On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. – Auto VIQS: On / Off |
Audio Compression | – G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | – H.265/ H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Mobile Terminal Compatibility | iPad, iPhone (iOS 4.2.1 or later), AndroidTM mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/Output | |
Audio Input | ø3.5 mm stereo mini jack, Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/ Pa,1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5V ±0.5V |
Built-in microphone | Nondirectional electret condenser microphone |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
External I/O Terminals | ALARM IN 1 (Auto time adjustment) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | DC power supply: DC12 V 385 mA, Approx. 4.6 W PoE (IEEE802.3af compliant) Device: DC48 V 105 mA, Approx. 5.1 W (Class 2 device) |
Ambient Operating Temperature | –10 °C to +50 °C (14 °F to 122 °F) |
Ambient Operating Humidity | 10% to 90 % (no condensation) |
Dimensions | ø150 mm × 50.5 mm (H) {ø5-29/32 inches × 2 inches (H)} |
Mass (approx.) | Approx. 390 g {0.86 lbs} |
Finish | Main body: ABS resin, sail white |
