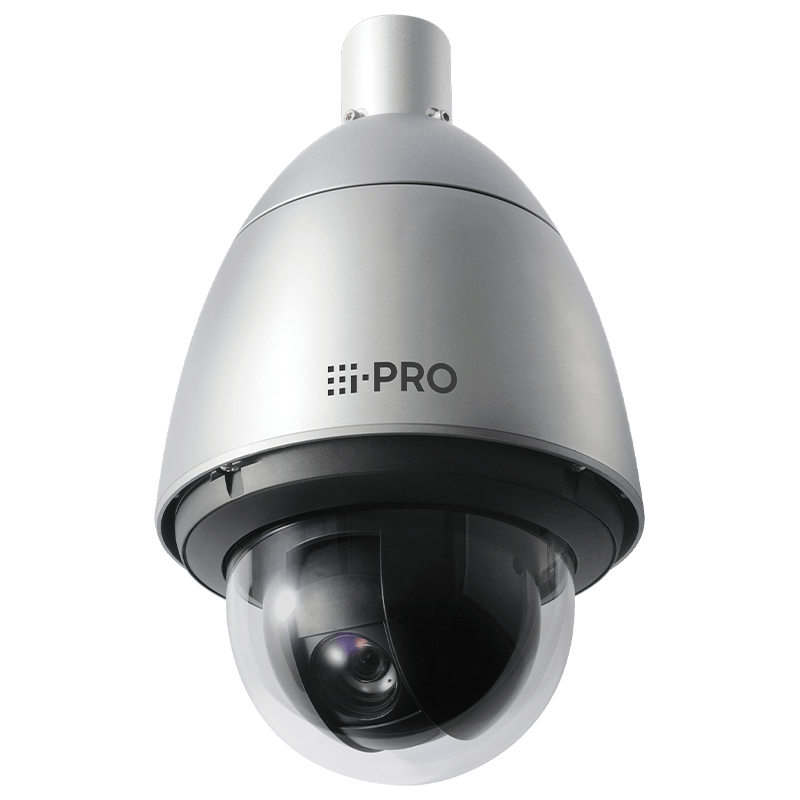

Camera Ipro WV-S6530N

Mã sản phẩmWV-S6530N
Thương hiệuI-PRO
Xuất xứJapan
Giá:Liên hệ
Tình trạng:Hàng sẵn kho

I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.

Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…

– Cảm biến hình ảnh: Approx. 1/2.9 Type MOS image sensor.

– Độ phân giải camera ip: 3.0 Megapixel.

– Tốc độ khung hình: Lên đến 60 fps.

– Ống kính: 4.0 mm – 84.6 mm.

– Độ nhạy sáng tối thiểu: Color: 0.015lx, BW: 0.006lx.

– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.

– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện:

+ AC 24V (50Hz/60Hz), 2.7A Approx. 43W.

+ PoE+ (IEEE802.3at) DC 54V/ 430mA, Approx. 22W (Class4 device).

COMPONENT	SPECIFICATION
Image Sensor	Approx. 1/2.9 Type MOS image sensor
Minimum Illumination	Color : 0.015 lx, BW : 0.006 lx (F1.6, Maximum shutter : Off (1/30s), AGC : 11) Color : 0.001 lx, BW : 0.0004 lx (F1.6, Maximum shutter : max. 16/30s, AGC : 11)
Intelligent Auto	On / Off
Shutter Speed	1/30 Fix to 1/10000 Fix 1/30 Fix to 2/120 Fix is available during 30 fps mode only. 1/60 Fix is available during 60 fps mode only.
Super Dynamic	On / Off, The level can be set in the range of 0 to 31.
Dynamic Range	Max.144 dB (Super Dynamic : On)
Image Settings	Gain (AGC), White balance
Image Compensation	Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Color/BW (ICR)	Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
Video Motion Detection (VMD)	On / Off, 4 areas available
Intelligent VMD (i-VMD)	Type4 *Bundled License
Stabilizer	On / Off (available only in the 30 fps mode)
Privacy Zone	Filling / Pixelate / Off (up to 32 zones available)
Camera Title (OSD)	On / Off, Up to 20 characters (alphanumeric characters, marks)
CameraTitle (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Lens
Zoom Ratio	21x Optical 31x HD Extra Optical Zoom (when resolution is 1280×720)
Digital (electronic) zoom	16x
Focal length	4.0 mm – 84.6 mm {5/32 inches – 3-11/32 inches}
Maximum Aperture Ratio	1 : 1.6 (WIDE) – 1 : 4.5 (TELE)
Focus range	1.5 m {4ft 11-1/16 inches} – ∞
Angular Field of view	– [16 : 9 mode] Horizontal: 3.4° (TELE) – 73° (WIDE) Vertical: 2.0° (TELE) – 42° (WIDE) – [4 : 3 mode] Horizontal: 2.9° (TELE) – 61° (WIDE) Vertical: 2.2° (TELE) – 46° (WIDE)
Pan/tilt
Panning Range	0° – 350°
Panning Speed	Manual: Approx. 0.5°/s – 100°/s Preset: Up to approx. 300°/s
Tilting Range	Operational range: –30 ° – 90 ° (level – downward) Recommended range: 0 ° – 90 ° Selectable tilting angle: 10°/ 5°/ 3°/ 0°/ –3°/ –5°/ –10°/ –15°/ –20°/ –25°/ –30°
Tilting Speed	Manual: Approx. 0.5 °/s – 100 °/s Preset: Up to approx. 100°/s
Preset Positions	256 positions
Auto Mode	Auto track/ Auto pan/ Preset sequence/ Patrol
Self Return	10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
Browser GUI
Camera Control	Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software
Audio	– Mic (Line) Input: On/ Off Volume adjustment : Low/ Middle/ High – Audio Output: On/ Off Volume adjustment : Low / Middle / High
GUI/Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	– 2 Megapixel [16 : 9] (30/60 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 – 3 Megapixel [4 : 3] (30 fps) 2048×1536/ 1280×960/ 800×600/ VGA/ 400×300/ QVGA *Used by super resolution techniques
H.265/H.264	– Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast
JPEG	– Image Quality: 10 steps
Smart Coding	– Smart Facial Coding : On(Smart Facial Coding)/ On(AUTO VIQS)/ Off * Smart Facial Coding is only available with Stream(1) GOP(Group of pictures) control: On(Advanced)/ On(Low)/ On(Mid)/ Off On(Advanced) is only available with H.265.
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps / 96 kbps/ 128 kbps
Audio transmission mode	Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)
Supported Protocol	– IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access number	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)	– H.265 / H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB 256 GB** model SDHC card, * SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility	iPad/ iPhone, Android mobile terminals
Alarm
Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output
Input/Output
Audio Input	ø3.5 mm stereo mini jack (monaural input) Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 4.0 V ±0.5 V
Audio Output	ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals	ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption	AC 24V(50 Hz/60 Hz), 2.7A Approx. 43W PoE+ (IEEE802.3at) DC 54V/ 43 mA, Approx. 22W(Class4 device)
Ambient Operating Temperature	-40°C to +60°C {-40°F to +140°F} (AC 24V) -30°C to +60°C {-22°F to +140°F} (PoE+ device) {Power On range: -30°C to +60°C (-22°F to +140°F)}
Ambient Operating Humidity	10 to 100 % (no condensation)
Water and Dust Resistance	IP66 (IEC60529), Type 4 (UL50), NEMA 4 compliant
Shock Resistance	IK10 (IEC62262)
Dimensions	Maximum ø229 mm × 393 (H) mm{ø9-1/32 inches × 15-15/32 inches (H)}
Mass (approx.)	Approx. 4.8 kg {10.58 lbs} (including attachment pipe: Approx. 200g {0.44 lbs})
Finish	Main body: Aluminum die cast, Natural silver Sunshields: ABS+PC resin coating, Natural silver Outer fixing screws: SUS (Corrosion-resistant treatment) Dome cover: Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear
