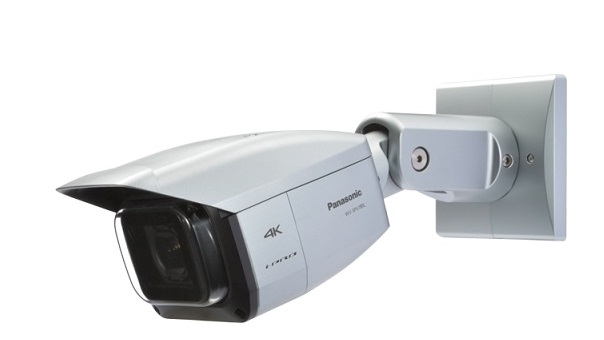

Camera Ipro WV-SPV781L
- Mã sản phẩmWV-SPV781L
- Thương hiệuI-PRO
- Xuất xứJapan
- Giá:Liên hệ
- Tình trạng:Đã ngưng sản xuất
I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.
Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…
– Cảm biến hình ảnh: 1/1.7 type MOS image sensor.
– Độ phân giải camera ip: 8.0 Megapixel.
– Tốc độ khung hình: Lên đến 30 fps.
– Ống kính: 4.2 mm – 25.2 mm.
– Độ nhạy sáng tối thiểu: Color: 0.3 lx, BW: 0.04 lx; B/W: 0.0 lux (with IR LED on).
– Tầm quan sát hồng ngoại: 30 mét.
– Chuẩn nén hình ảnh: H.264/JPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nhiệt độ hoạt động: -45°C to 50°C.
– Nguồn điện:
+ DC12V: 1050mA/ Approx. 12.6W.
+ PoE (IEEE802.3af compliant)/PoE DC48V: 265mA/Approx. 12.95W (Class 0 device).
Model | WV-SPV781L |
Camera | |
Image Sensor | 1/1.7 type MOS image sensor |
Scanning Mode | Progressive scan |
Scanning Area | 7.40 mm (H) x 5.55 mm (V) {9/32 inches (H) x 7/32 inches (V)} |
Minimum Illumination | Color: 0.3 lx, BW: 0.04 lx, BW (with IR LED): 0 lx (F1.6, Maximum shutter: Off (1/30s), Gain: High), Color: 0.02 lx, BW 0.003 lx (F1.6, Maximum shutter: Max. 16/30s, AGC: High) |
IR LED Light | Off/ Auto (High/ Mid/ Low) |
IR LED irradiation distance | Approx. 30 m {98.43 feet} at IR LED: Auto (High) |
White Balance | ATW1 (2,700 – 6,000 K) /ATW2 (2,000 – 6,000 K) /AWC (2,000 – 10,000 K) |
Light Control Mode | Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter |
Maximum shutter | max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
Shutter Speed | Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
Wide Dynamic Range | On/ Off |
Adaptive Black Stretch | On/ Off (only when Wide dynamic range) |
Fog compensation | On/ Off (only when Wide dynamic range/ Adaptive black stretch: Off) |
High light compensation (HLC) | On/ Off (only when Wide Dynamic Range/ Back light compensation (BLC): Off) |
Gain (AGC) | On (High)/ On (Mid)/ On (Low)/ Off |
Day/Night (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
Digital Noise Reduction | High/ Low |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Privacy Zone | On/ Off (up to 8 zones available) |
VIQS | On/ Off (Max. 8 locations) |
CameraTitle (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Focus Adjustment | ABF/ MANUAL (Html only) |
Lens | |
Vari Focal Length | 4.2 mm – 25.2 mm {5/32 inches – 1 inch} |
Angular Field of View | – [16 : 9 mode] Horizontal : 17 ° (TELE) – 97 ° (WIDE) Vertical : 9.4 ° (TELE) – 55 ° (WIDE) ‘- [4 : 3 mode] Horizontal : 18 ° (TELE) – 101 ° (WIDE) Vertical : 13 ° (TELE) – 76 ° (WIDE) |
Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 3.3 (TELE) |
Focusing Range | 1.0 m – ∞ |
Browser GUI | |
Cropping | H.264(1) Ch1 – Ch4 Up to 4 image capture areas can be specified. *only when Image capture mode : Cropping [16:9] (30fps mode) |
Camera Control | Brightness, AUX On/ Off |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available. |
Digital Zoom | 1x, 2x, 4x controlled by browser GUI |
Camera Title | Up to 20 alphanumeric characters |
Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
Alarm Control | Reset |
One Shot Capture | A still picture will be displayed on a newly opened window. |
Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory) error logs |
Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista® |
Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit) |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Image Resolution | – 8 Mega pixel [16 : 9] (30 fps mode)* + H.264(1): 3,840 x 2,160, up to 30 fps + JPEG(2): 640 x 360 * ‘H.264(2)’ and ‘JPEG(1)’ can not be selected. |
– 8 Megapixel [16 : 9] (15 fps mode) + H.264(1): 3,840 x 2,160, up to 15 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). JPEG(2): 640 x 360 | |
– 12 Megapixel [4 : 3] (15 fps mode) + H.264(1): 4,000 x 3,000, up to 15 fps + H.264(2): 640 x 480 / 320 x 240, up to 5 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480 | |
– 5 Megapixel [4 : 3] (30 fps mode) + H.264(1): 2,560 x 1,920/ 2,048 x 1,536/ 1,600 x 1,200/ 1,280 x 960/ 800 x 600, up to 30 fps + H.264(2): 1,280 x 960/ 800 x 600/ 640 x 480/ 320 x 240, up to 30 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480 | |
– 4 Megapixel [16 : 9] (30 fps mode)* + H.264(1): 2,560 x 1,440/ 1,920 x 1,080/ 1,280 x 720, up to 30 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(3): 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(4): 640 x 360, up to 30 fps + JPEG(2): 640 x 360 * ‘JPEG(1)’ can not be selected. | |
– Cropping [16 : 9] (30 fps mode) H.264(1): Ch1 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch2 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch3 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch4 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (2) or JPEG (2). JPEG(2): 640 x 360 | |
H.264 | – Transmission priority: Constant bit rate/ Variable bit rate/ Frame rate/ Best effort/ Advanced VBR – Frame Rate + 1/3/5*/7.5*/10*/12*/15*/ 20*/30*fps * The frame rate is limited to ‘bit rate’. When a value with an asterisk (*) is selected, the actual frame rate may be lower than the value selected. – Bit Rate/Client: 64/128/256/384/512/768/1,024/1,536/2,048/3,072/ 4,096/6,144/ 8,192/10,240/ 12,288/14,336/ 16,384/20,480 /24,576/30,720/40,960 kbps * The available range of the H.264 bit rate varies depending on the setting selected for “image capture size” – Image Quality: Low / Normal / Fine 0 Super Fine / 1 Fine / 2 / 3 / 4 / 5 Normal / 6 / 7 / 8 / 9 Low |
JPEG | – Image Quality: 10 steps – Refresh Interval: 0.1 fps – 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) – Transmission Type: Pull/ Push |
Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps/ AAC-LC*4 64 kbps/ 96 kbps/ 128 kbps |
Audio transmission/ reception | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
Alarm Log | With SDXC/SDHC/SD memory card: 50,000 logs |
Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Scene file/ FTP periodic image transmission |
Input/Output | |
Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, NTSC/ PAL composite, RCA jack |
Microphone/Line Input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) – For microphone input: Recommended applicable microphone: Plug-in power type Supply voltage: 2.5 V ±0.5 V Recommended sensitivity of microphone: –48 dB±3 dB (0 dB=1 V/Pa, 1 kHz) – For line input: Input level: Approx. –10 dBV |
Audio Output | ø3.5 mm stereo mini jack Output impedance: Approx. 600 Ω (unbalanced) / Output level: –20 dBV Can be used as the monitor output by switching the audio/monitor output plug. |
External I/O Terminals | ALARM IN1 (DAY/NIGHT IN), ALARM IN2 (ALARM OUT), ALARM IN3 (AUX OUT, DAY/NIGHT OUT) |
Input/Output | |
Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
External I/O Terminals | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2 (Alarm input 2/ ALARM OUT), ALARM IN3(Alarm input 3/ AUX OUT) (x1 for each) |
General | |
Safety | UL (UL60950-1, UL60950-22), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55023 ClassB, EN55022 ClassB, EN55024 |
Power Source and Power Consumption | DC12V: 1050 mA/ Approx. 12.6 W PoE (IEEE802.3af compliant)/ PoE DC48V : 265 mA/ Approx. 12.95W (Class 0 device) |
Ambient Operating Temperature | –45 °C to +50 °C {–49 °F to 122 °F} |
Ambient Operating Humidity | 10 to 90 % (no condensation) |
Impact Protection | Compliant with IK10 (IEC 62262) |
Water and Dust Resistance | Main body: IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
Dimensions | When directly mounting the camera to a ceiling or wall 131 mm {5-5/32 inches} (W), 130 mm {5-1/8 inches} (H), 380 mm {1ft 2-31/32 inches} (D) When using the adapter box 133 mm {5-1/4 inches} (W), 133 mm {5-1/4 inches} (H), 420 mm {1ft 4-17/32 inches} (D) |
Mass (approx.) | When directly mounting the camera to a ceiling or wall: Approx. 2.6 kg {5.73 lbs} When using the adapter box: Approx. 3.1 kg {6.82 lbs} |
Finish | Main body: Aluminum die cast or resin, metallic silver Transparent section of front cover: Polycarbonate resin, Clear (with rain wash coating) |
