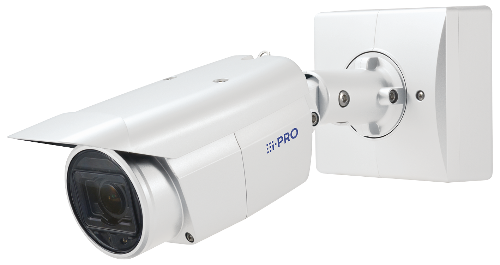

Camera Ipro WV- X1571LN

Cường độ ánh sáng nhỏ nhất

Color : 0.09 lx, BW : 0.05 lx (F1.5, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (F1.5, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.006 lx, BW : 0.003 lx (F1.5, Maximum shutter : max. 16/30s, AGC : 11) *1

Cân bằng trắng

ATW1/ATW2/AWC

Cài đặt tốc độ màn trập

1/30 Fix to 1/10000 Fix

AI Intelligent Auto

On / Off

Dải động

On / Off, the level can be set in the range of 0 to 31.

Dynamic Range Stretch (DRS)

Max.132 dB (Super Dynamic : On, Level : 31)

Bù sáng

BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / AI Intelligent Auto : Off)

Bù sương

On / Off , The level can be set in the range of 0 to 8 (only when AI Intelligent auto / auto contrast adjust : Off)

AGC

The level can be set in the range of 0 to 11.

Color/BW (ICR)

Off / On (IR Light Off) / On (IR Light On) / Auto1(IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

Đèn LED

High / Middle / Low / Off, Maximum irradiation distance : 40 m {Xấp xỉ 131 ft}

Giảm nhiễu động (DNR)

The level can be set in the range of 0 to 255.

Phát hiện chuyển động (VMD)

On / Off, 4 areas available

Phát hiện chuyển cảnh

On / Off, 1 area available

Vùng bảo mật

On / Off (up to 8 zones available)

Xoay hình

0 ° (Off) / 90 ° / 180 ° (Upside-down) / 270 °

OSD

On / Off Up to 20 characters (alphanumeric characters, marks)

Tùy chỉnh thu phóng

2.0x (Motorized zoom / Motorized focus)

Tùy chọn zoom

6.0x (when resolution is 1280×720)

Zoom tự động

Choose from 3 levels of x1, x2, x4

Độ dài tiêu cự

4.3 mm – 8.6 mm {5/32 inches – 11/32 inches}

Tỷ lệ khẩu hình

1 : 1.5 (WIDE) – 1 : 2.4(TELE)

Phạm vi tiêu điểm

1 m {39-3/8 inches} – ∞

Góc nhìn

[16 : 9 mode ] *[4:3 mode] is not supported. Horizontal : 53° (TELE) – 104° (WIDE), Vertical : 30° (TELE) – 56° (WIDE

Phát hiện

(25ppm / 8ft) Wide: 60.00 m / 196.86 ft, Tele: 154.04 m / 505.37 ft

Quan sát

(62.5ppm / 19ft) Wide: 24.00 m / 78.74 ft, Tele: 61.61 m / 202.15 ft

Nhận biết

(125ppm / 38ft) Wide: 12.00 m / 39.37 ft, Tele: 30.81 m / 101.07 ft

Xác định

(250ppm / 76ft) Wide: 6.00 m / 19.69 ft, Tele: 15.40 m / 50.54 ft

Gắn trần

Horizontal : ±180 ° (Adjust by horizontal (PAN) angle) Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle) Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)

Gắn tường

Horizontal : ±100 ° (Adjust by vertical (TILT) angle)*Vertical : ±100 ° (Adjust by vertical (TILT) angle)*Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)*You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle.

Kiểm soát hình ảnh

Brightness, AUX On / Off

Âm thanh

Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High

GUI / Cài đặt ngôn ngữ

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network IF

10Base-T / 100Base-TX, RJ45 connector

Mã hóa thông minh

Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream(1). GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265.

Nén âm thanh

G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps AAC-LC* : 64 kbps / 96 kbps / 128 kbps * When recording audio on an SD memory card, only use AAC-LC (Advanced Audio Coding – Low Complexity).

Truyền âm thanh

Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Giao thức hỗ trợ

IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

Số người dùng đồng thời

Up to 14 users (Depends on network conditions)

Thẻ nhớ SDXC/SDHC/SD

H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card)

Thiết bị di động tương thích

iPad, iPhone, AndroidTM terminals

ONVIF Profile

G / S / M / T

Nguồn cảnh báo (Alarm/Event)

3 terminals input, VMD alarm, Command alarm

Cảnh báo

SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output

Đầu ra hình (for Adjustment)

VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera

Đầu vào âm thanh

ø3.5 mm stereo mini jack

Đầu ra âm thanh

ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Xấp xỉ 600 Ω (unbalanced) Output level : –20 dBV

External I/O Terminals (Cable)

ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

An toàn

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Nguồn điện và mức tiêu thụ

DC power supply : DC 12 V 930 mA/Xấp xỉ 11.2 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA/Xấp xỉ 11.5 W (Class 0 device

Nhiệt độ hoạt động

-40 °C to +60 °C (-40 °F to +140 °F)* (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) * This camera is not equipped with the function to change the audio output to the monitor output.

Độ ẩm hoạt động

10 to 100 % (no condensation)

Chống nước và bụi

IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant

Chống sốc

IK10 (IEC 62262)

Chống gió

Up to 40 m/s {Xấp xỉ 89 mph}

Kích thước

With adapter box : 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box : 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)}

Trọng lượng

With adapter box : 2.2 kg {4.85 lbs} Without adapter box : 1.7 kg {3.75 lbs}
