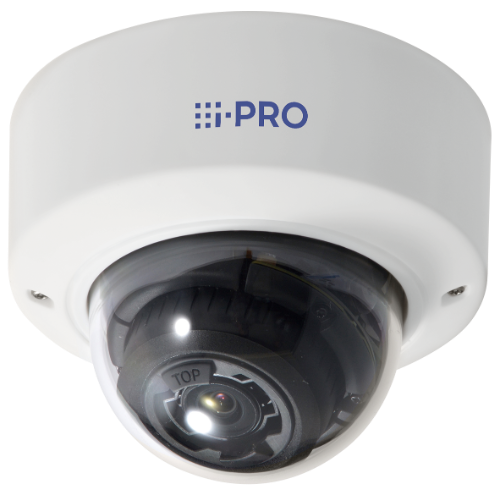

Camera Ipro WV- X2251L

Cảm biến hình

1/2.8 type CMOS image sensor

Cường độ ánh sáng nhỏ nhất

Color : 0.07 lx, BW : 0.04 lx (50IRE, F1.3, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (50IRE, F1.3, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.0044 lx, BW : 0.003 lx (50IRE, F1.3, Maximum shutter : max. 16/30s, AGC : 11)

Cân bằng trắng

ATW1/ATW2/AWC

Tốc độ màn trập

[30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix

AI Intelligent Auto

On / Off

Dải động

On / Off, The level can be set in the range of 0 to 31.

Dải tần nhạy sáng

Max. 132 dB (Super Dynamic : On, Level : 30 or more, 15fps)

Bù sáng

BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / AI Intelligent Auto : Off)

Bù sương mù

On / Off, The level can be set in the range of 0 to 8 (only when AI Intelligent auto / auto contrast adjust : Off)

AGC

The level can be set in the range of 0 to 11.

Color/BW (ICR)

Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)

Đèn LED

High / Middle / Low / Off, Maximum irradiation distance : 30 m {Xấp xỉ 98 ft}

Giảm nhiễu động

The level can be set in the range of 0 to 255.

Phát hiện chuyển động (VMD)

On / Off, 4 areas available

Phát hiện chuyển cảnh SCD

On / Off, 1 area available

Vùng bảo mật

On / Off, Up to 8 zones available

Quay hình

0 ° (Off) / 90 °/ 180 ° (Upside-down) / 270 °

OSD

On / Off, Up to 20 characters (alphanumeric characters, marks)

Zoom quang học

3.1x (Motorized zoom / Motorized focus)

Tùy chọn zoom

3.1x – 9.3 (when resolution is 640×360)

Zoom tự động

Choose from 3 levels of x1, x2, x4

Độ dài tiêu cự

2.9 mm – 9 mm {1/8 inches – 11/32 inches}

Tỷ lệ khẩu độ

1 : 1.3 (WIDE) – 1 : 2.5 (TELE)

Phạm vi tiêu điểm

0.3 m {11-13/16 inches} – ∞

Góc quan sát

[16 : 9 mode] Horizontal : 33° (TELE) – 105° (WIDE), Vertical: 19° (TELE) – 56° (WIDE) *[4:3 mode] is not supported.

Phát hiện

(25ppm / 8ft) Wide: 207.42 m / 680.51 ft , Tele: 47.14 m / 154.67 ft

Quan sát

(62.5ppm / 19ft) Wide: 82.97 m / 272.20 ft , Tele: 18.86 m / 61.87 ft

Nhận biết

(125ppm / 38ft) Wide: 41.48 m / 136.10 ft , Tele: 9.43 m / 30.93 ft

Xác định

(250ppm / 76ft) Wide: 20.74 m / 68.05 ft , Tele: 4.71 m / 15.47 ft

Tùy chinh góc

Horizontal (PAN) angle : ±180°, Vertical (TILT) angle : -30 to +85°, Azimuth (YAW) angle : ±100°

Kiểm soát hình ảnh

Brightness, AUX On / Off

Âm thanh

Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High

GUI / Cài đặt ngôn ngữ

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network IF

10Base-T / 100Base-TX, RJ45 connector

Độ phân giải H.265/ H.264 JPEG (MJPEG)

[16 : 9 mode] 3072×1728*7, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 *[4:3 mode] is not supported.

H.265/H.264

[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast

JPEG

[Image Quality] 10 steps

Mã hóa thông minh

Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream(1). GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265.

Nén âm thanh

G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps

Truyền âm thanh

Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Giao thức hỗ trợ

IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

Số người dùng tối đa

Up to 14 users (Depends on network conditions)

Thẻ nhớ SDXC/SDHC/SD

H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card)

Thiết bị di động tương thích

iPad, iPhone, AndroidTM terminals

ONVIF Profile

G / S / M / T

Nguồn cảnh báo

3 terminals input, VMD alarm, Command alarm

Cảnh báo

SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output

Đầu ra hình

VBS : 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera

Đầu vào âm thanh

ø3.5 mm stereo mini jack [For microphone input] Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Xấp xỉ 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V [For line input] Input level : Xấp xỉ –10 dBV

Đầu ra âm thanh

ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Xấp xỉ 600 Ω (unbalanced) Output level : –20 dBV

External I/O Terminals

ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

Độ an toàn

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Nguồn điện và mức tiêu thụ

DC power supply : DC 12 V 890 mA/Xấp xỉ 10.7 W PoE (IEEE802.3af compliant) Device : DC48 V 230 mA/ Xấp xỉ 11.0 W (Class 0 device)

Nhiệt độ hoạt động

-10 °C to +50 °C (+14 °F to +122 °F)

Độ ẩm hoạt động

10 to 90 % (no condensation)

Chống sốc

IK10 (IEC 62262)

Kích thước

ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)} Dome radius 41.5 mm {1-5/8 inches}

Trọng lượng

Xấp xỉ 830 g {1.83 lbs}
