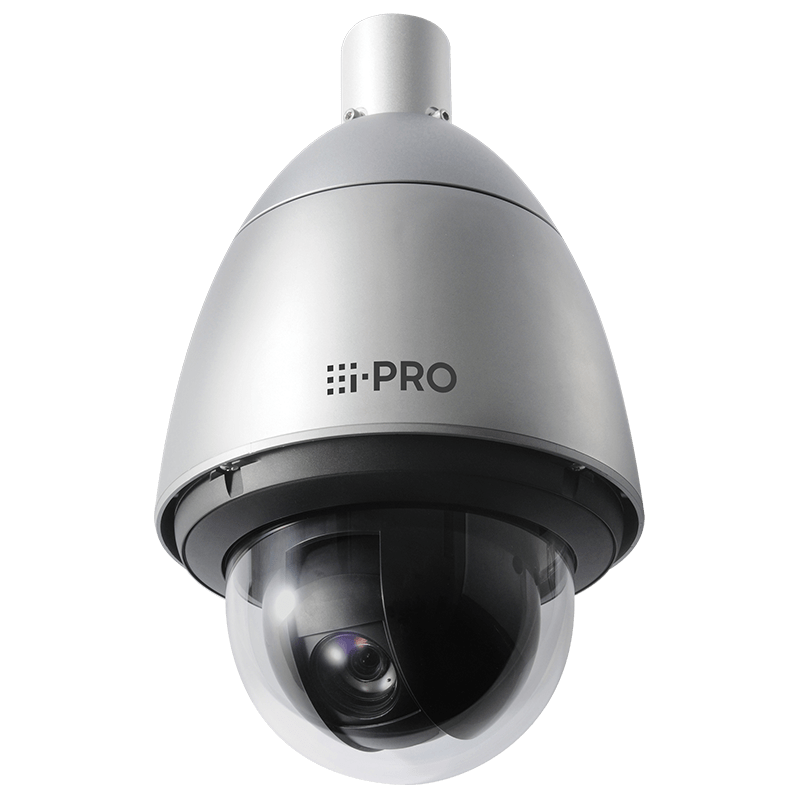

Camera Ipro WV-X6511N
Camera Ipro WV-X6511N

Camera Ipro WV-X6511N

  • Mã sản phẩmWV-X6511N
  • Thương hiệuI-PRO
  • Xuất xứJapan
  • Giá:Liên hệ
  • Tình trạng:Hàng sẵn kho

I-PRO (Panasonic) là thương hiệu uy tín, chuyên cung ứng các sản phẩm thuộc nhóm mặt hàng camera quan sát an ninh (Security camera & CCTV / Surveillance system) từ nhà máy chính đặt tại Nhật Bản cho thị trường toàn cầu – chiếm đa số.

Bên cạnh đó, I-PRO (thuộc tập đoàn Panasonic) còn có nhà máy chuyên sản xuất các dòng thiết bị camera giám sát và phụ kiện phục vụ nhu cầu thị trường nội địa & xuất khẩu. Các sản phẩm thuộc thương hiệu I-PRO, được phân phối chính hãng bởi Công ty cổ phần công nghệ Phúc Bình, với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, hứa hẹn sẽ mang đến những trải nghiệm hình ảnh rõ nét, phù hợp lắp đặt tại các vị trí như: cửa hàng, siêu thị, văn phòng, xưởng sản xuất, nhà máy, bệnh viện, gia đình…

– Cảm biến hình ảnh: Approx. 1/2.8 type MOS image sensor.
– Độ phân giải camera ip: 1.0 Megapixel (HD (720p/ 1280 x 960 pixel).
– Tốc độ khung hình: Lên đến 60 fps.
– Ống kính: 4.25 mm – 170 mm.
– Độ nhạy sáng tối thiểu: Color: 0.011lx, BW: 0.005lx.
– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nguồn điện:
+ AC 24V/3.4A, Approx. 55W;
+ PoE+ (IEEE802.3at compliant): DC 54V/ 470 mA, Approx. 25W;
+ Tested POE Injector (60W): DC 54V/1.0A, Approx. 50W.

ModelWV-X6511N
Camera
Image SensorApprox. 1/2.8 type MOS image sensor
Minimum Illumination– Color: 0.011 lx, BW: 0.005 lx (F1.6, Maximum shutter: Off (1/30s), AGC: 11)
– Color: 0.0007 lx, BW: 0.0003 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11)
Intelligent AutoOn/ Off
Shutter Speed1/30 Fix to 1/10000 Fix
*1/30 Fix to 2/120 Fix is available during 30 fps mode only.
*1/60 Fix is available during 60 fps mode only.
Super DynamicOn / Off, the level can be set in the range of 0 to 31.
Dynamic Range144 dB (Super Dynamic: On)
Image SettingsGain (AGC), White balance
Image CompensationAdaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Color/BW (ICR)Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Video Motion Detection (VMD)On/ Off, 4 areas available
Intelligent VMD (i-VMD)Type4 *Bundled License
StabilizerOn/ Off (available only in the 30 fps mode)
Privacy ZoneFilling/ Pixelate/ Off (up to 32 zones availabl
CameraTitle (OSD)On/ Off Up to 20 characters (alphanumeric characters, marks)
Lens
Zoom Ratio40x Optical
60x HD Extra Optical Zoom
Digital (electronic) zoom16x
Focal length4.25 mm – 170 mm {5/32 inches – 6-11/16 inches}
Maximum Aperture Ratio1 : 1.6 (WIDE) – 1 : 4.95 (TELE)
Focus range3.0 m {9ft 10-1/8 inches} – ∞
Angular Field of view– [16 : 9 mode] Horizontal: 2.1° (TELE) – 65° (WIDE)
Vertical: 1.2° (TELE) – 39° (WIDE)
– [4 : 3 mode] Horizontal: 1.6° (TELE) – 51° (WIDE)
Vertical: 1.2° (TELE) – 39° (WIDE)
Pan/tilt
Panning Range360° Endless panning
Panning SpeedManual: Approx. 0.065°/s – 120°/s
Preset: Up to approx. 300°/s
Tilting RangeOperational range: –15° – 195° (level – downward – level)
Recommended range: 0° – 180°
Selectable tilting angle: 10°/ 5°/ 3°/ 0°/ –3°/ –5°/ –10°/ –15°
Tilting SpeedManual: Approx. 0.065°/s – 120°/s
Preset: Up to approx. 300°/s
Preset Positions256 positions
Auto ModeAuto track/ Auto pan/ Preset sequence/ Patrol
Self Return10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
Browser GUI
Camera ControlPan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX,
Rec. on SD, Log, Viewer software
Audio– Mic (Line) Input: On/ Off
Volume adjustment : Low/ Middle/ High
– Audio Output: On/ Off
Volume adjustment : Low / Middle / High
GUI/Setup Menu LanguageEnglish, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
Network IF10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)– 1.3 Megapixel [16 : 9] (30/60 fps)
1280×720/ 640×360/ 320×180
– 1.3 Megapixel [4:3] (30 fps mode)
1280×960/ 800×600/ VGA/ 400×300/ QVGA
H.265/H.264– Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
– Transmission Type: Unicast/ Multicast
JPEG– Image Quality: 10 steps
Smart Coding– Smart Facial Coding : On(Smart Facial Coding)/ On(AUTO VIQS)/ Off
* Smart Facial Coding is only available with Stream(1)
GOP(Group of pictures) control: On(Advanced)*/ On(Low)/ On(Mid)/ Off
* On(Advanced) is only available with H.265.
Audio CompressionG.726 (ADPCM): 16 kbps/ 32 kbps,
G.711: 64 kbps,
AAC-LC: 64 kbps / 96 kbps/ 128 kbps
Audio transmission modeOff / Mic (Line) input/ Audio output/ Interactive (Half duplex)/
Interactive (Full duplex)
Supported Protocol– IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
– IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Maximum concurrent access numberUp to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)– H.265 / H.264 recording:
Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/
Backup upon network failure
– JPEG recording:
Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
– Compatible SDXC/SDHC/SD Memory Card:
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**
256 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal CompatibilityiPad/ iPhone, Android mobile terminals
Alarm
Alarm Source3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm
Alarm ActionsSDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output
Input/Output
Audio Inputø3.5 mm stereo mini jack (monaural input)
Input impedance: Approx. 2 kΩ (unbalanced)
(Applicable microphone: Plug-in power type)
Supply voltage: 4.0 V ±0.5 V
Audio Outputø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced)
External I/O TerminalsALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
SafetyUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMCFCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power ConsumptionAC 24V/3.4A, Approx. 55W
PoE+ (IEEE802.3at compliant): DC 54V/470 mA, Approx. 25W
Tested POE Injector (60 W): DC 54V/1.0 A, Approx. 50W
Ambient Operating Temperature–50 °C to +60 °C {–58 °F to +140 °F}
(AC 24 V/ Tested PoE injector (60 W))
–30 °C to +60 °C {–22 °F to +140 °F} (PoE+ device)
{Power On range: –30 °C to +60 °C (–22 °F to +140 °F)}
Ambient Operating Humidity10 to 100 % (no condensation)
Water and Dust ResistanceIP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
Shock ResistanceIK10 (IEC62262)
DimensionsMaximum ø229 mm × 393 (H) mm {ø9-1/32 inches × 15-15/32 inches (H)}
Mass (approx.)Approx. 5.2 kg {11.47 lbs}
FinishMain body: Aluminum die cast, Natural silver
Sunshields: ABS+PC resin coating, Natural silver
Outer fixing screws: SUS (Corrosion-resistant treatment)
Dome cover: Polycarbonate resin
(with ClearSight coating (rain wash coating)), Clear
