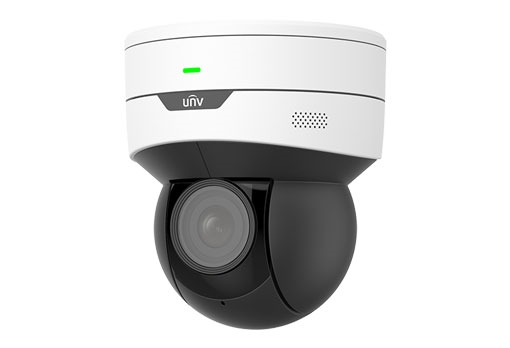

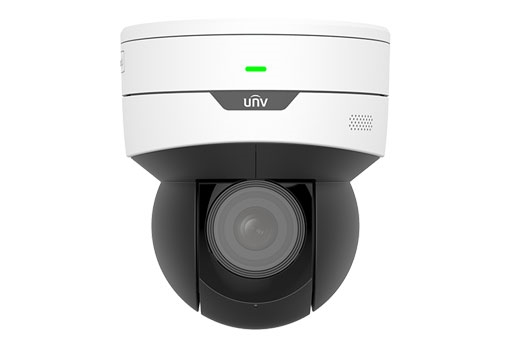

Camera UNV IPC6412LR-X5UPW-VG

IPC6412LR-X5UPW-VG

Camera

Sensor

1/2.7″, 2.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour:0.003 lux (F1.2, AGC ON)
0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

＞52dB

Lens

Lens type

2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens

Iris

Auto aperture

Angle of View (H)

30.6°~106.9°

Angle of View (V)

17.7°~56.0°

Angle of View (O)

37.6°~139.0°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.7

70.9(232.5ft)

28.4(93.0ft)

14.2(46.5ft)

7.1(23.3ft)

13.5

247.5(812.0ft)

99.0(324.8ft)

49.5(162.4ft)

24.8(81.2ft)

Illuminator

IR Range

Up to 30m (98 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

U-code

Support

ROI

Up to 8 areas

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

24 areas, up to 4 blacks in the same picture


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°

HLC

Support

BLC

Support

Defog

Digital Defog

Events

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation
EZLive
Ezview

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

350°

Pan Speed

0.1°/s ~ 60°/s

Preset speed: 60°/s

Tilt Range

0° ~ 90°

Tilt Speed

0.1° ~ 50°/s

Preset speed: 50°/s

Number of Presets

1024

Patrol

Preset patrol

Preset Image Freeze

N/A

Home Position

Support

Interface

Audio I/O

N/A

Alarm I/O

1/1

Serial Port

1 RS485

Built-in Mic

Support

Built-in Speaker

Support

WIFI

Support（IEEE802.11b/g/n）

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video output

N/A

Certification

EMC

FCC Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013

Safety

IEC 62368-1
EN 62368-1
UL 60950-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

Protection

N/A

General

Power

DC12V(±25%), PoE(IEEE 802.3at)

Power consumption: Max 15W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ129 x 143.6mm (Φ5.1’’ x 5.7’’)

Weight

0.76kg(1.67lb)

Working Environment

-10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

Surge protection

2KV

Vandal Resistant

N/A

Ingress Protection

N/A

Reset Button

Support
