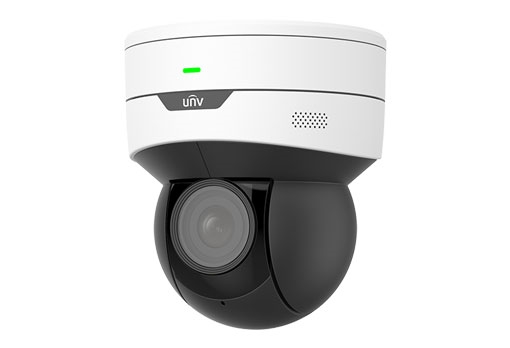

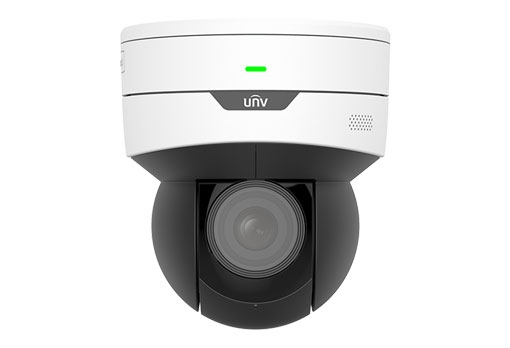

Camera UNV IPC6415SR-X5UPW-VG

IPC6415SR-X5UPW-VG

Camera

Sensor

1/2.7″, 5.0 megapixel, progressive scan, CMOS

Lens

2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens

Iris

Auto aperture

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.7

70.9(232.5ft)

28.4(93.0ft)

14.2(46.5ft)

7.1(23.3ft)

13.5

247.5(812.0ft)

99.0(324.8ft)

49.5(162.4ft)

24.8(81.2ft)

Angle of View (H)

30.6°~106.9°

Angle of View (V)

17.7°~56.0°

Angle of View (O)

37.6°~139.0°

Shutter

Auto/Manual, 1 ~ 1/100000s

Min. Illumination

Colour:0.003 lux (F1.2, AGC ON)
0 lux with IR

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

S/N

56dB

IR Range

Up to 30m (98 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 5MP (2880*1620),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

ROI

Supported

Video stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°

HLC

Support

BLC

Support

Events

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711U, G.711A

Two-way Audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
EZLive
Ezview

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

350°

Pan Speed

0.1°/s ~ 60°/s

Preset speed: 60°/s

Tilt Range

0° ~ 90°

Tilt Speed

0.1° ~ 50°/s

Preset speed: 50°/s

Number of Presets

1024

Patrol

Preset patrol

Home Position

Supported

Interface

Audio I/O

N/A

Alarm I/O

1/1

Serial Port

1 RS485

Built-in Mic

Supported

Built-in Speaker

Supported

WIFI

Supported

Network

1 * RJ45 10M/100M Base-TX Ethernet

Certification

Certifications

IEC 62368-1
EN 62368-1
UL 60950-1
FCC Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013

General

Power

DC12V(±25%), PoE(IEEE 802.3at)

Power consumption: Max 13W

Dimensions (Ø x H)

Φ129 x 143.6mm (Φ5.1″ x 5.7″)

Weight

0.75kg(1.65lb)

Working Environment

-10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)

Surge protection

2KV
