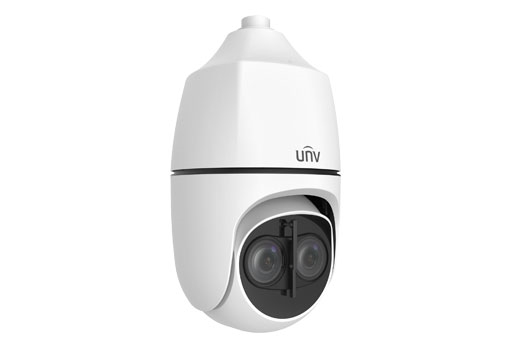

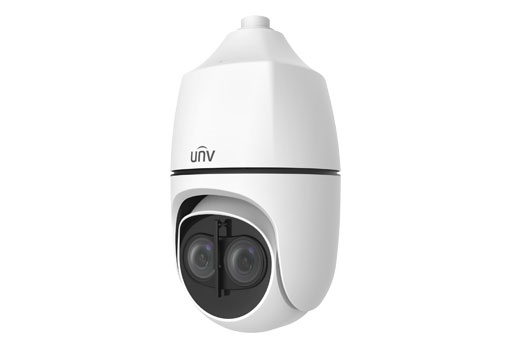

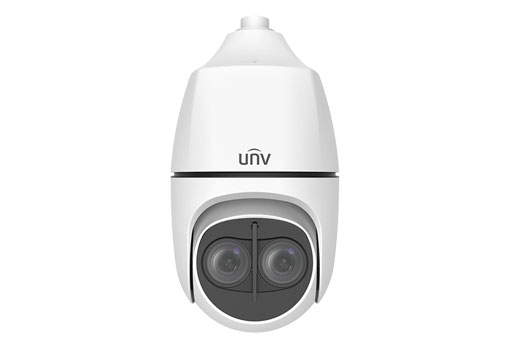

Camera UNV IPC6854SL-X40WUP-VC

Camera

Sensor

1/1.8″, 4.0 megapixel, progressive scan, CMOS

Lens

5.7 ~ 228mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

40

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

5.7

107.2(351.8ft)

42.9(140.7ft)

21.4(70.4ft)

10.7(35.2ft)

228

3330.6(10927.2ft)

1332.2(4370.9ft)

666.1(2185.4ft)

333.1(1092.7ft)

Angle of View (H)

58.5° ~ 2.1°

Angle of View (V)

34.9° ~ 1.2°

Angle of View (O)

72.0° ~ 2.5°

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.0005Lux (F1.3, AGC ON)
0Lux with IR

Iris

Auto/Manual; F1.3 ~ F4.6

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>56dB

VF Laser

650m(2132ft)

Wiper

Support manual wiper function

IR On/Off Control

Auto/Manual

Defog

Optical Defog

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP (2688*1520), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
Fourth Stream: D1 (720*576), Max 60fps
Fifth Stream: D1 (720*576), Max 60fps

Video Bit Rate

128 Kbps~16 Mbps

ROI

Up to 8 areas

Video stream

Five streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 blacks (Up to 8 blacks / 8 mosaics in the same picture)


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Flip

Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise

EIS

Supported (gyroscope)

HLC

Support

BLC

Support

Event

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR,NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
Ezview
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 180°/s

Preset speed: 300°/s

Tilt Range

-15° ~ 90° (auto reverse)

Tilt Speed

0.1° ~ 180°

Preset speed: 240°/s

Number of Presets

1024

Patrol

Preset patrol, route patrol, recorded patrol

Home Position

Supported

Interface

Audio I/O

Audio cable

1 input: impedance 1kΩ; amplitude 2V [p-p]

1 output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

7/2

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

General

Power

AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt)

Power consumption: Max 62W

Dimensions (Ø x H)

Φ270 x 497mm (Φ10.6” x 19.6”)

Weight

9.69kg (21.4lb)

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection

IP66

Reset Button

Supported
