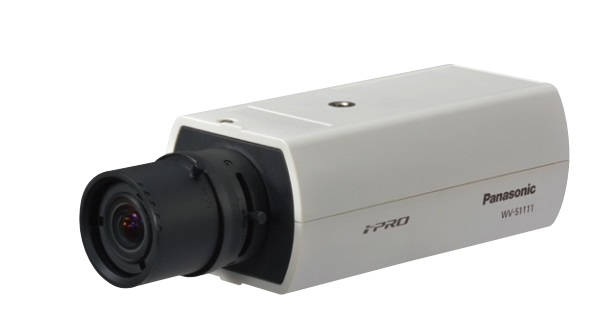

Panasonic WV-S1111 độ phân giải HD720p – Tốc độ ghi hình đến 60 hình/ giây.
Cảm biến kích thước 1/2.8 inch, công nghệ độ nhạy cao MOS.
Độ nhạy sáng trung bình: 0.007 lx (Color), 0.003 lx (B/W) at F1.4.
Độ nhạy sáng cực tiểu: 0.0005 lx (Color), 0.0002 lx (B/W) at F1.4.
Điện thế sử dụng: DC 12 V DC / PoE (Class 2 device) (Chưa bao gồm ống kính – Option)
Các tính năng đặc biệt :
– Tích hợp công nghệ iA (intelligent Auto) xử lý hình ảnh thông minh tự động trong nhiều hoàn cảnh quan sát phức tạp (Ngày/Đêm, chuyển động nhanh…)
– Chuẩn nén mới H.265 kết hợp với công nghệ độc quyền Smart Coding giúp giảm băng thông đến 75% & tăng thời lượng lưu trữ lâu hơn
– Dãy động rộng đến 144dB, cho phép tăng hiệu suất quan sát chính xác màu sắc vật thể trong điều kiện ánh sáng thấp.
– Đạt tiêu chuẩn FIPS 140-2 cấp độ 01 về Bảo mật & An toàn thông tin của Viện Tiêu chuẩn và Công nghệ quốc gia Mỹ (NIST) ban hành.
– Cho phép sẵn sàng cài đặt thêm các ứng dụng thông minh trực tiếp lên phần cứng camera (cảnh báo vượt giới hạn, cảnh báo lảng vãng, cảnh báo ngược chiều, cảnh báo phá hoại…)
Model | WV-S1111 |
Camera | |
Image Sensor | Approx. 1/2.8 type MOS image sensor |
Minimum Illumination | – Color: 0.007 lx, BW: 0.003 lx (F1.4, Maximum shutter: Off (1/30s), AGC: 11) – Color: 0.0005 lx, BW: 0.0002 lx (F1.4, Maximum shutter: max. 16/30s, AGC: 11) |
White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
Intelligent Auto | On/ Off |
Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
Dynamic Range | 144 dB (Super Dynamic: On) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
Digital Noise Reduction | The level can be set in the range of 0 to 255 |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 4 *Bundled License |
Stabilizer | On/ Off (available only in the 30 fps mode) |
Privacy Zone | On/ Off (up to 8 zones available) |
Image rotation | 0°/ 90°/ 180°/ 270° |
CameraTitle (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Focus Adjustment | Auto back focus/ Manual |
Browser GUI | |
Camera Control | Brightness, AUX On/ Off |
Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On / Off Volume adjustment: Low/ Middle/ High |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution H.265/ H.264 JPEG (MJPEG) | – 1.3 Megapixel [16 : 9] (30/60 fps) 1,280 x 720/ 640 x 360/ 320 x 180 – 1.3 Megapixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
Smart Coding | – Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off *Smart Facial Coding is only available with Stream(1). – GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off *On(Advanced) is only available with H.265 |
Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | – H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card |
Mobile Terminal Compatibility | iPad, iPhone, AndroidTM mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/ Output | |
Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | DC power supply: DC12 V 460 mA, Approx. 5.6 W PoE (IEEE802.3af compliant) Device: DC48V/120 mA, Approx. 5.8 W (Class 2 device) |
Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
Ambient Operating Humidity | 10 to 90% (no condensation) |
Dimensions | 75 mm (W) x 57 mm (H) x 146 mm (D) {2-15/16 inches (W) x 2-1/4 inches (H) x 5-3/4 inches (D)} (excluding lens / power cord plug) |
Mass (approx.) | 350 g { 0.77 ibs.} |
Finish | Main body: PC/ ABS resin (Sail white) |
