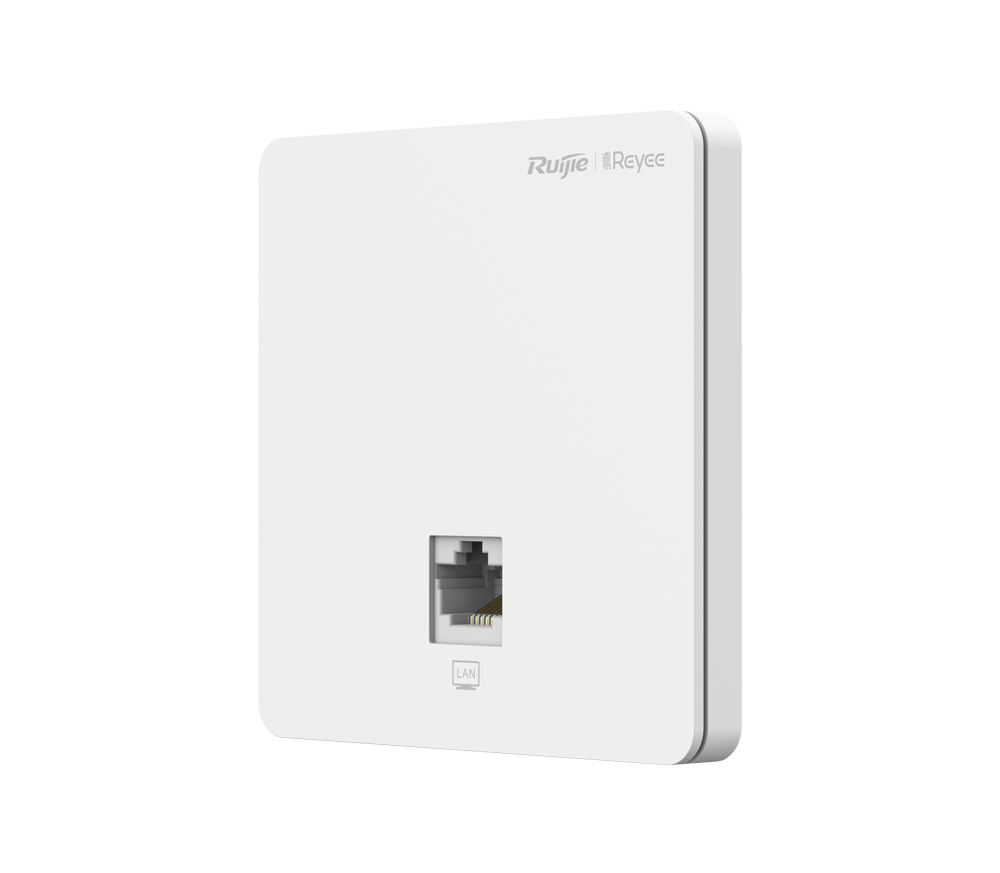

Reyee Wireless RG-RAP1200(F)

Mã sản phẩmRG-RAP1200(F)
Thương hiệuReyee
Xuất xứChina
Giá:Liên hệ
Tình trạng:Hàng sẵn kho

Ruijie Networks là một trong 4 nhà sản xuất thiết bị mạng – wifi cấp doanh nghiệp (Enterprise) lớn nhất thế giới (Ruijie, Cisco, HP, Huawei,…). Các sản phẩm cấp doanh nghiệp được kiểm tra và chứng nhận bởi công ty Tolly (USA).

Reyee Wireless RG-RAP1200(F) là một trong những sản phẩm thuộc bộ sưu tập sản phẩm của Ruijie, được phân phối bởi Công ty CPCN Phúc Bình. Với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, phù hợp sử dụng cho khách sạn, cửa hàng, văn phòng vừa & nhỏ.

– High-speed dual-band Wi-Fi
– Support routing and AP mode
– Support Layer 3 networking
– Stronger and more stable signals
– Robust casing
– Simple installation

Radio	Dual-stream dual-band
Protocol	Concurrent 802.11b/g/n/ac
Operating Bands	802.11b/g/n ：2.4G ~ 2.4835GHz 802.11a/n/ac ： 5G：5.150～5.350GHz，5.47～5.725，5.725～5.850GHz (Note: The operating bands vary according to different countries)
Antenna	PCB antenna
Spatial Streams	2.4G: 2 Spatial Streams,2×2 MIMO 5G: 2 Spatial Streams,2×2 MIMO
Max Throughput	2.4G: up to 400Mbps 5G: up to 866.7Mbps
Modulation	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity	11b：-97dBm(1Mbps) ，-92dBm(5Mbps) ，-89dBm(11Mbps) 11a/g：-94dBm（6Mbps），-85dBm（24Mbps），-82dBm（36Mbps），-76.5dBm（54Mbps） 11n：-93.5dBm@MCS0，-74dBm@MCS7，-74dBm@MCS15 11ac：HT20：-92.5dBm（MCS0）, -68.5dBm（MCS8） 11ac：HT40：-89dBm（MCS0）, -64dBm（MCS9） 11ac：HT80：-86dBm（MCS0）, -60.5dBm（MCS8）
Maximum Transmit Power	20dBm (adjustable)
Adjustable Power	1dBm
Dimensions	868629.3
Weight	<0.25kg
Service Ports	Front： 1 10/100Mbps Ethernet port Rear： 1 10/100Mbps PoE Ethernet port
Management Port	N/A
LED Indicator	Support
Power Supply	Support 802.3af power supply
Power Consumption	＜8W
Environment	Operating temperature: 0°C～40°C
	Storage temperature: -40°C～70°C
	Operating humidity: 5％～95％（non-condensing）
	Storage humidity: 5％～95％（non-condensing）
Installation	86mm wall plate installation
IP Rating	IP41
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification
Software Features
Operating Mode	AP mode and routing mode
WLAN	Maximum number of clients: 110
	Recommended number of clients: 24 (8 at 2.4GHz, 16 at 5GHz)
	Up to 8 SSIDs
	Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
	SSID-based and radio-based STA limit
	Support Layer 2 user isolation
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication
	Support static blacklist and whitelist
	Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform
Platform management features	Automatic RF adjustment via the platform
	Unified configuration via the platform
	Unified monitoring via the platform
