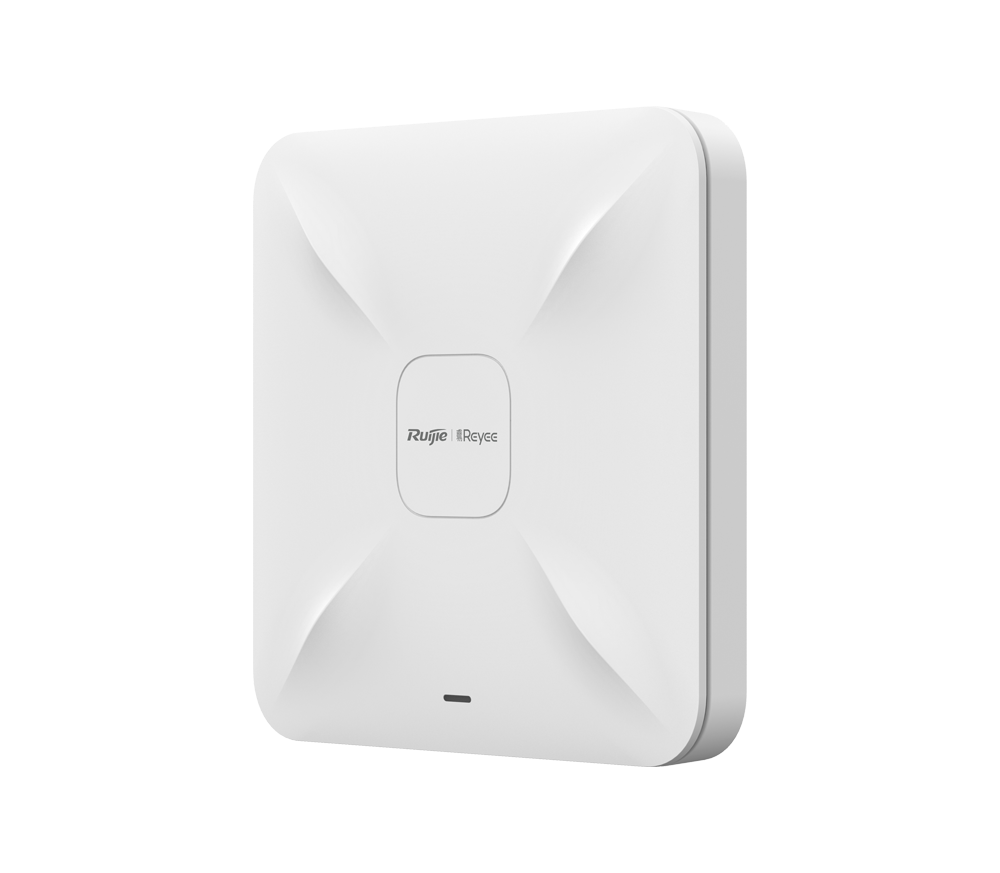

Reyee Wireless RG-RAP2200(F)

  • Mã sản phẩmRG-RAP2200(F)
  • Thương hiệuReyee
  • Xuất xứChina
  • Giá:Liên hệ
  • Tình trạng:Hàng sẵn kho
Ruijie Networks là một trong 4 nhà sản xuất thiết bị mạng – wifi cấp doanh nghiệp (Enterprise) lớn nhất thế giới (Ruijie, Cisco, HP, Huawei,…). Các sản phẩm cấp doanh nghiệp được kiểm tra và chứng nhận bởi công ty Tolly (USA).

Reyee Wireless RG-RAP2200(F) là một trong những sản phẩm thuộc bộ sưu tập sản phẩm của Ruijie, được phân phối bởi Công ty CPCN Phúc Bình. Với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, phù hợp sử dụng cho khách sạn, cửa hàng, văn phòng vừa & nhỏ.

Reyee Wireless RG-RAP2200(F)

• 802.11ac Wave2 technology
• Auto-provisioning  via  Self-Organizing  Network:
Supports  Ruijie’s  self-developed  smart  networking  feature,  which  breaks  through  the  product  limitations  and  realizes  auto-discovery,  auto-networking  and  auto-configuration  between  gateways,  switches,  and  wireless  APs  without  the  need  for controllers or Internet access
• Lifetime  free  Ruijie  Cloud  management:  Remote  fault  alarm,  one-click  optimizing  and  maintenance on Ruijie Cloud App
• More LAN Ports: Two LAN interfaces are provided to support more services
• Seamless layer 3 roaming
• Industrial Design: Robust casing, Provide better strength and safety for products

Hardware specifications
RadioDual-stream dual-band
ProtocolConcurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands802.11b/g/n:2.4G ~ 2.4835GHz

802.11a/n/ac:5G:5.150~5.350GHz,5.725~5.850GHz

AntennaArray antennas(2.4G: 2dBi,5G: 2dBi)
Spatial Streams2.4G 2x2MIMO 5G 2x2MIMO
Max ThroughputUp to 400Mbps at 2.4G

Up to 867Mbps at 5G

1.267Gbp per AP

ModulationOFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receive Sensitivity11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)

11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)

11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15

11ac HT20: -83dBm (MCS0), -57dBm (MCS9)

11ac HT40: -79dBm (MCS0), -57dBm (MCS9)

11ac HT80: -76dBm (MCS0), -51dBm (MCS9)

Maximum Transmit Power5.725~5.850GHz:≤20dBm (EIRP)

5.150~5.350GHz:≤20dBm (EIRP)

2.4~2.4835GHz:≤20dBm (EIRP)

Adjustable Power1dBm
Dimensions194mm×194mm×35mm (excluding mounting kits)
Weight0.45kg (excluding mounting kits)
Service Ports2 10/100Base-T Ethernet ports,

PoE/LAN1 port supports PoE

Management PortNA
LED IndicatorNA
Power SupplySingle indicator (green light)
Power ConsumptionLocal power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)

802.3af/802.3at PoE

Environment≤12.95W
Operating temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Operating humidity: 5%~95%(non-condensing)
InstallationStorage humidity: 5%~95%(non-condensing)
Safety StandardGB4943, IEC 60950-1
EMC StandardGB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration StandardIEC61373
Radio StandardSRRC certification, EN300 328, EN301 893
MTBF>400000H
Software Features
Operating ModeAP mode and routing mode
WLANMaximum number of clients: 110
Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz)
Up to 8 SSIDs
Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit
Support Layer 2 user isolation
RoamingSupport Layer 2 and Layer 3 roaming
SecuritySupport PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
RoutingSupport static IP address, DHCP, PPPoE Dial Up
Management and maintenanceSupport unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management featuresAutomatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
