Reyee Wireless RG-RAP1200(P)

  • Mã sản phẩmRG-RAP1200(P)
  • Thương hiệuReyee
  • Xuất xứChina
  • Giá:Liên hệ
  • Tình trạng:Hàng sẵn kho
Ruijie Networks là một trong 4 nhà sản xuất thiết bị mạng – wifi cấp doanh nghiệp (Enterprise) lớn nhất thế giới (Ruijie, Cisco, HP, Huawei,…). Các sản phẩm cấp doanh nghiệp được kiểm tra và chứng nhận bởi công ty Tolly (USA).

Reyee Wireless RG-RAP1200(P) là một trong những sản phẩm thuộc bộ sưu tập sản phẩm của Ruijie, được phân phối bởi Công ty CPCN Phúc Bình. Với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, phù hợp sử dụng cho khách sạn, cửa hàng, văn phòng vừa & nhỏ.

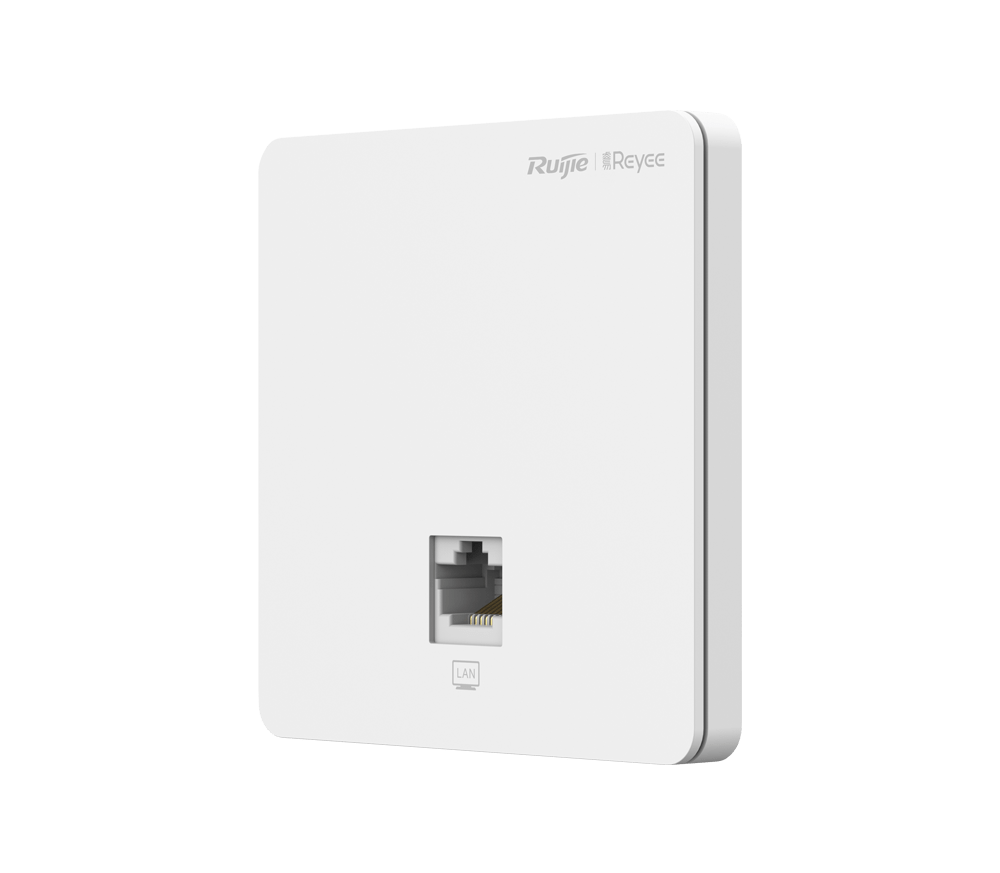

Reyee Wireless RG-RAP1200(P)

Product Features

High-speed dual-band Wi-Fi

The device supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

Support routing and AP mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

Support Layer 3 networking

The device supports Layer 3 roaming for the Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Support PoE output

The AP offers 1 PoE output port. When the AP is powered by 802.3at, this port can supply power to devices below 4W (such as IP phones), expanding more service scenarios.

Stronger and more stable signals

The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Management Features

Multiple management methods

The AP supports management via Ruijie Cloud app, Ruijie Cloud platform and equipment EWEB management to achieve local and remote management on PC and Ruijie Cloud app.

Fast and smart configuration

In large-scale complex networks, the configuration of the entire network can be completed by connecting to a single gateway device. There is no need to configure the devices separately, which can greatly reduce the device configuration time.

Scenario-based configuration

Scenario-based configurations can be performed via the web and Ruijie Cloud app, which can greatly reduce the configuration threshold of complex functions, such as visitor isolation solution, flow control solution, etc. Even novices can easily fulfill the diverse and complex requirements of the customers.

Visualized operation and maintenance

The cloud computing network topology can comprehensively present the equipment operating status of the entire network. Through the rich information in the topology, you can quickly get the full picture of the network (network egress status, link status, device status), and quantify the user experience and network quality, so that users can master the information of the entire network.

Remote collaborative management

Users can perform comprehensive remote operation, management, and maintenance of the equipment in the entire network via the Ruijie Cloud app, Ruijie Cloud platform, etc. They can also share the network to third party for network hosting and collaborative management to operate and maintain the enterprise network more efficiently.

AI & big data network optimization

Through artificial intelligence and cloud big data, the AP can perform comprehensive smart network operation, maintenance, and optimization, including but not limited to:

1. Automatic identification of new equipment and adding it into the network, automatic system repair such as avoiding conflict of the WAN IP addresses

2. Smart system optimization such as service-based network policy configuration, RF channel and roaming adjustment

3. Diagnosis and repair suggestions for more than 30 common network anomalies including DHCP conflicts, abnormal negotiation rates, excessive traffic, AP disconnection and device interference.

Hardware specifications
Hardware specifications
RadioDual-stream dual-band
ProtocolConcurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands802.11b/g/n :2.4G ~ 2.4835GHz

802.11a/n/ac : 5G:5.150~5.350GHz,5.725~5.850GHz

AntennaPF antenna (2.4G: 2dBi,5G: 2dBi)
Spatial Streams2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput2.4G: up to 400Mbps

5G: up to 867Mbps

Access rate per AP: 1.267Gbps

ModulationOFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps


Receive Sensitivity11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)



11ac HT20:-83dBm(MCS0), -57dBm(MCS9)

11ac HT40:-79dBm(MCS0), -57dBm(MCS9)

11ac HT80:-76dBm(MCS0), -51dBm(MCS9)

Maximum Transmit Power5.725~5.850GHz:≤18dBm (EIRP)

5.150~5.350GHz:≤18dBm (EIRP)

2.4~2.4835GHz:≤18dBm (EIRP)

Adjustable Power1dBm
Service PortsFront:
4 10/100/1000Base-T Ethernet ports

LAN1 port supports IEEE.802.3af PoE OUT

1 10/100/1000Base-T Ethernet port

Management PortN/A
LED Indicator1 LED indicator
Power SupplySupport PoE (802.3af/at)
Power Consumption≤8W
EnvironmentOperating temperature: -30°C~65°C
Storage temperature: -40°C~85°C
Operating humidity: 0%~100%(non-condensing)
Storage humidity: 0%~100%(non-condensing)
InstallationWall plate installation
Safety StandardGB4943, IEC 62368-1
EMC StandardGB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration StandardIEC61373
Radio StandardSRRC certification, EN300 328, EN301 893
Software Features
Operating ModeAP mode and routing mode
WLANMaximum number of clients: 110
Recommended number of clients: 80
Up to 8 SSIDs
Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit
Support Layer 2 user isolation
RoamingSupport Layer 2 and Layer 3 roaming
SecuritySupport PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
RoutingSupport static IP address, DHCP, PPPoE Dial Up
Management and maintenanceSupport unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform
