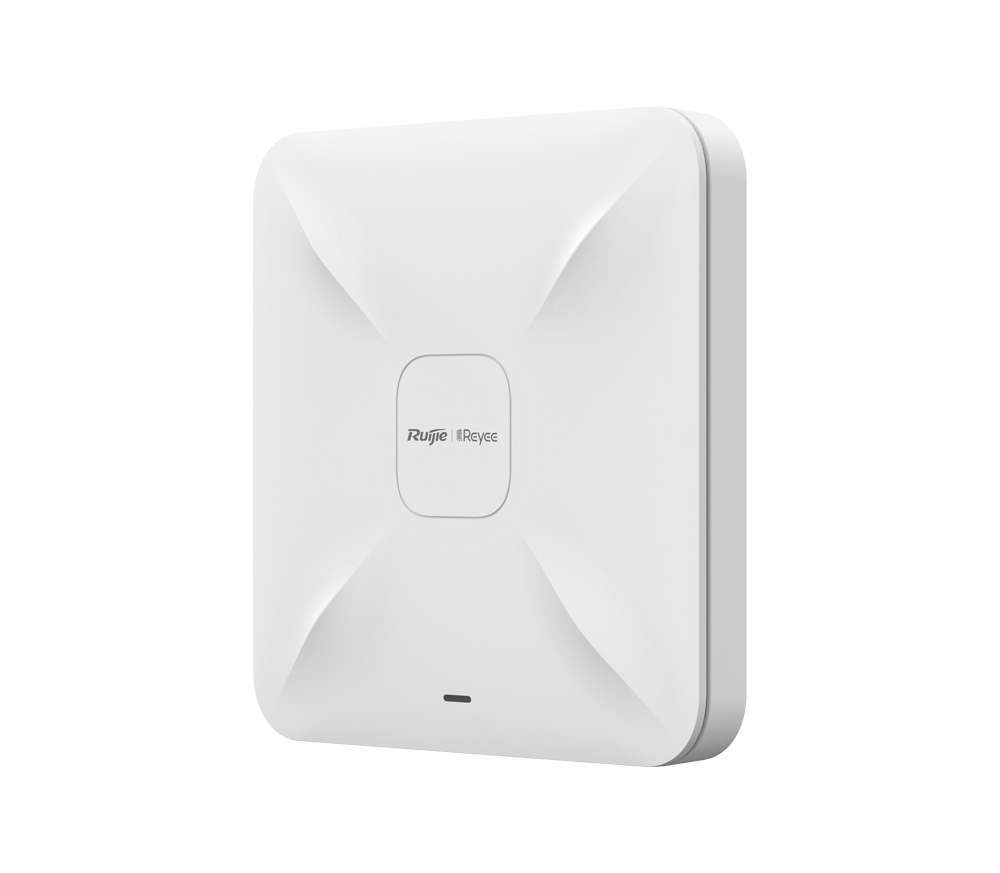

Reyee Wireless RG-RAP2200(E)

Mã sản phẩmRG-RAP2200(E)
Thương hiệuReyee
Xuất xứChina
Giá:Liên hệ
Tình trạng:Hàng sẵn kho

Ruijie Networks là một trong 4 nhà sản xuất thiết bị mạng – wifi cấp doanh nghiệp (Enterprise) lớn nhất thế giới (Ruijie, Cisco, HP, Huawei,…). Các sản phẩm cấp doanh nghiệp được kiểm tra và chứng nhận bởi công ty Tolly (USA).

Reyee Wireless RG-RAP2200(E) là một trong những sản phẩm thuộc bộ sưu tập sản phẩm của Ruijie, được phân phối bởi Công ty CPCN Phúc Bình. Với thiết kế tinh tế kết hợp cùng những tính năng nổi bật, phù hợp sử dụng cho khách sạn, cửa hàng, văn phòng vừa & nhỏ.

• 802.11ac Wave2 technology
• Auto-provisioning via Self-Organizing Network:
Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access
• Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App
• More LAN Ports: Two LAN interfaces are provided to support more services
• Seamless layer 3 roaming
• Industrial Design: Robust casing, Provide better strength and safety for products

Hardware specifications
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands	802.11b/g/n：2.4G ~ 2.4835GHz 802.11a/n/ac：5G：5.150～5.350GHz，5.725～5.850GHz
Antenna	Array antennas（2.4G: 2dBi，5G: 2dBi）
Spatial Streams	2.4G 2x2MIMO 5G 2x2MIMO
Max Throughput	Up to 400Mbps at 2.4G Up to 867Mbps at 5G 1.267Gbp per AP
Modulation	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity	11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps) 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20: -83dBm (MCS0), -57dBm (MCS9) 11ac HT40: -79dBm (MCS0), -57dBm (MCS9) 11ac HT80: -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power	5.725～5.850GHz：≤20dBm (EIRP) 5.150～5.350GHz：≤20dBm (EIRP) 2.4～2.4835GHz：≤20dBm (EIRP)
Adjustable Power	1dBm
Dimensions	194mm×194mm×35mm (excluding mounting kits)
Weight	0.45kg (excluding mounting kits)
Service Ports	2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
Management Port	NA
LED Indicator	NA
Power Supply	Single indicator (green light)
Power Consumption	Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE
Environment	≤12.95W
	Operating temperature: 0°C～40°C
	Storage temperature: -40°C～70°C
	Operating humidity: 5％～95％（non-condensing）
Installation	Storage humidity: 5％～95％（non-condensing）
Safety Standard	GB4943, IEC 60950-1
EMC Standard	GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035
Vibration Standard	IEC61373
Radio Standard	SRRC certification, EN300 328, EN301 893
MTBF	>400000H
Software Features
Operating Mode	AP mode and routing mode
WLAN	Maximum number of clients: 110
	Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz)
	Up to 8 SSIDs
	Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
	SSID-based and radio-based STA limit
	Support Layer 2 user isolation
Roaming	Support Layer 2 and Layer 3 roaming
Security	Support PSK authentication
	Support static blacklist and whitelist
	Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial Up
Management and maintenance	Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform
Platform management features	Automatic RF adjustment via the platform
	Unified configuration via the platform
	Unified monitoring via the platform
