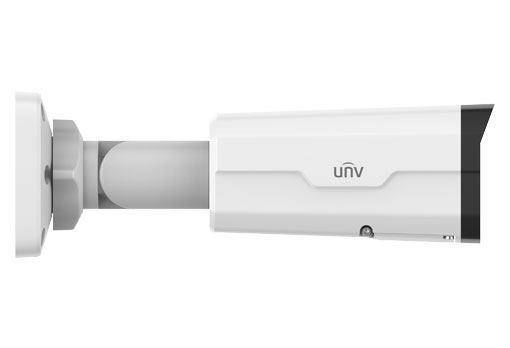

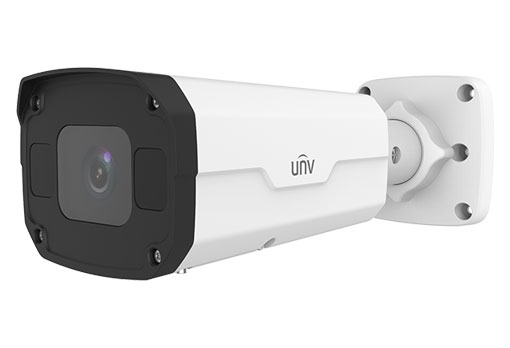

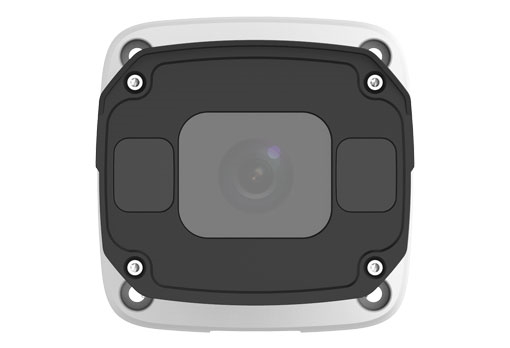

Camera UNV IPC2324SB-DZK-I0
- Mã sản phẩmIPC2324SB-DZK-I0
- Thương hiệuUniview
- Xuất xứChina
- Giá:Liên hệ
- Tình trạng:Hàng sẵn kho
- Bảo hành:12 tháng
Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.
Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.
Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
In 2021, Phuc Binh officially becomes UNV’s partner in camera CCTV and video recorder products
Camera UNV IPC2324SB-DZK-I0 is currently distributed by Phuc Binh with full CO, CQ according to project requirements.
Camera IP dạng thân trụ, ống kính có tiêu cự thay đổi, hỗ trợ hồng ngoại, trang bị công nghệ xử lý hình ảnh LightHunter, độ phân giải 4MP HD
• Cảm biến CMOS kích thước 1/3″, 4MP
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
• Hỗ trợ chuẩn nén Ultra 265, H.265, H.264, MJPEG
• Công nghệ xử lý hình ảnh LightHunter
• Hỗ trợ chống ngược sáng thực (True WDR) 120dB
• Hỗ trợ chế độ hành lang tỷ lệ khung hình 9:16
• Hỗ trợ cổng báo động: 1 cổng báo động đầu vào, 1 cổng báo động đầu ra, hỗ trợ audio: 1 cổng audio vào và 1 cổng xuất tín hiệu audio
• Hồng ngoại thông minh, tầm quan sát lên tới 50m (164ft)
• Thẻ nhớ Micro SD tối đa 256GB
• Tiêu chuẩn bảo vệ chống phá hủy IK10
• Tiêu chuẩn bảo vệ IP67
• Hỗ trợ PoE
| IPC2324SB-DZK-I0 | |||||||
| Camera | |||||||
| Sensor | 1/3″, 4.0megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7 ~ 13.5mm, AFautomaticfocusingandmotorizedzoomlens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
| 13.5 | 303.8 | 121.5 | 60.8 | 30.4 | |||
| Angle of view (H) | 98.26°~ 31.35° | ||||||
| Angle of View (V) | 54.76°~ 18.55° | ||||||
| Angle of View (O) | 127.74°~36.99° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way Audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 8.5W | |||||||
| Dimensions (L × W × H) | 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”) | ||||||
| Net Weight | 0.92kg (2.03lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | N/A | ||||||
