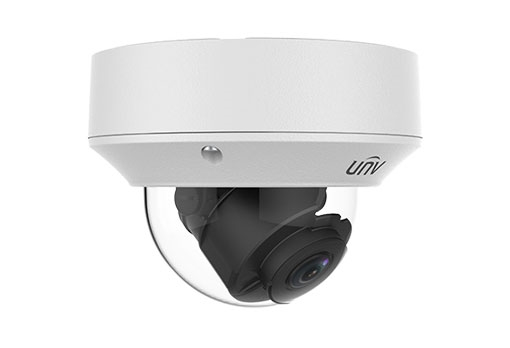

Camera UNV IPC3235LR3-VSP-D

Mã sản phẩmIPC3235LR3-VSP-D
Thương hiệuUniview
Xuất xứChina
Giá:Liên hệ
Tình trạng:Hàng sẵn kho
Bảo hành:12 tháng

Uniview is the pioneer and leader of IP video surveillance. Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share.
Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc.
Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
In 2021, Phuc Binh officially becomes UNV’s partner in camera CCTV and video recorder products
IPC3235LR3-VSP-D is currently distributed by Phuc Binh with full CO, CQ according to project requirements.

Camera dạng bán cầu ống kính có tiêu cự thay đổi, bảo vệ chống phá hủy, độ phân giải 5MP

Quang học
* Chế độ ngày/đêm
* Hồng ngoại thông minh, chiều dài hồng ngoại lên tới 30m (98ft)
* Mặt kính chuyên dụng chống phản xạ hồng ngoại giúp tăng cường độ truyền ánh sáng hồng ngoại
* 2D/3D DNR (Khử nhiễu số)
Chuẩn nén
* Ultra 265,H.265, H.264, MJPEG
* ROI (Vùng tập trung)
Giao thức mạng
* Hỗ trợ chuẩn giao tiếp ONVIF
Vận hành
* Dải nhiệt độ rộng: -40°C ~ +60°C (-40°F ~ 140°F)
* Dải điện áp lớn ±25%
* Tiêu chuẩn bảo vệ chống phá hủy IK10
* Tiêu chuẩn bảo vệ chống nước chống bụi IP67
* 3-Axis

Specification of IPC3235LR3-VSP-D

	IPC3235LR3-VSP-D
Camera
Sensor	1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, manual zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63		25.2	12.6		6.3
	12	270		108	54		27
Angle of View (H)	105.3° ~ 25.4°
Angle of View (V)	69.5° ~ 18.4°
Angle of View (O)	136.9° ~ 31.2°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 5MP (25921944), Max 20fps; Sub Stream: 720P (1280720), Max 20fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	NA
HLC	Supported
BLC	Supported
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 8.7W
Dimensions (Ø x H)	Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight	0.92kg (2.0lb)
Material	Metal + Plastic
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
