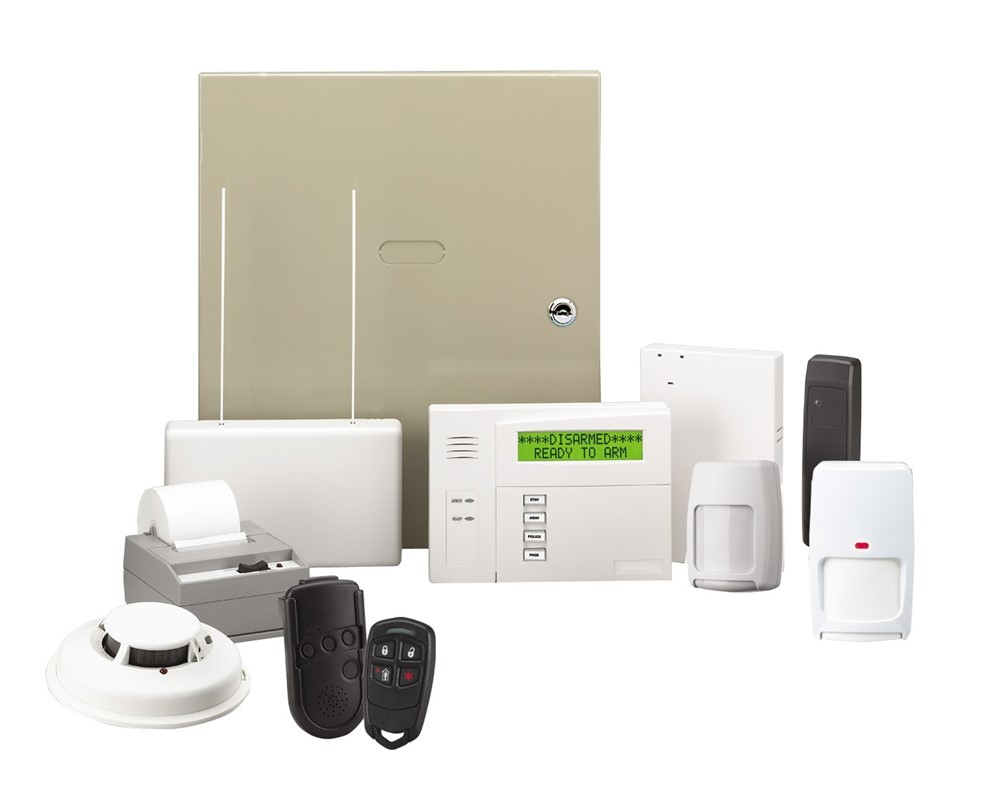

Thiết bị báo cháy Honeywell VISTA-128BPT

• Provides nine style-B hardwired zones
• Supports up to 119 additional zones using a built-in polling (V-Plex®, multiplex) loop interface
• Supports up to 127 wireless zones using up to two 5800 series wireless receivers (fewer if using hardwire and/or polling loop zones)
• Provides one power-limited bell circuit delivering 1.7Amp (max) at 12VDC
• Provides the ability to control eight separate partitions independently, each functioning as if it had its own separate control
• Accommodates 150 user codes with seven authority levels
• Accommodates 32 keypad macro commands per system
• Keeps a log of up to 512 events
• Supports up to 16 compatible two-wire smoke detectors on zone 1
• Zone 7 may be used for keyswitch arming/disarming
• Integrates with WIN-PAK access control systems to provide increased users, event log and scheduling
• Supports V-Plex addressable VISTAKEY access control (up to eight doors and 250 cards)
• Easily programmed and maintained by Compass Windows-based downloader
• Supports up to 96 programmable outputs
• Programmable to meet SIA false alarm prevention specifications. To meet UL approval for ANSI/SIA CP-01-2010, order part number V128BPTSIA
• Supports up to six touchscreen Advanced User Interface (AUI) devices (6272 or later)
• Smoke detector reset at keypad
• Quick exit
• Group bypass
• Arm faulted
• Event arming
• Carbon monoxide (CO) zone type support
• Expanded high-speed RS-232 capability for third party interface and automation
• Internet upload/download over AlarmNet GSM and/or IP communicators over the panel’s keypad (ECP) bus
• Ringback support for AlarmNet communicators (confirmation of closing report)
• 24-hour dialer test support for AlarmNet devices
• Supports V-Plex Smart Contact feature for improved responsiveness on systems with many V-Plex zones
• Telco line cut detection

BASIC HARDWIRED ZONES

Provides nine style-B hardwired zones with the following characteristics:

• EOLR supervision (optional for zones 2-8) supporting N.O. or N.C. sensors (EOLR supervision required for fire and UL burglary installations)
• Individually assignable to one of eight partitions
•  Up to 16 two-wire smoke detectors on zone 1
• Four-wire smoke or heat detectors on zones 1-8 (power to four-wire smoke detectors must be supervised with an EOL device). Listed for residential fire only.

ELECTRICAL

• Voltage Input: From Honeywell Home No. 1361 Plug-In Transformer or 1361X10 transformer (for X-10 installations) rated 16.5VAC, 40 VA
• Use 1361CN plug-in transformer for Canada
• Alarm Sounder Output: 10VDC-13.8VDC, 1.7 amps max., (UL1023, UL609 installations); 750mA less aux. current draw (UL985 installations)
• Auxiliary Power Output: 9.6VDC13.8VDC, 750mA max. For UL installations, the accessories connected to the output must be UL Listed, and rated to operate in the above voltage range
• Backup Battery: 12VDC, 4AH or 7AH sealed-lead acid. YUASA NP4-12 (12V, 4AH) or NP7-12 (12V, 7AH) recommended
